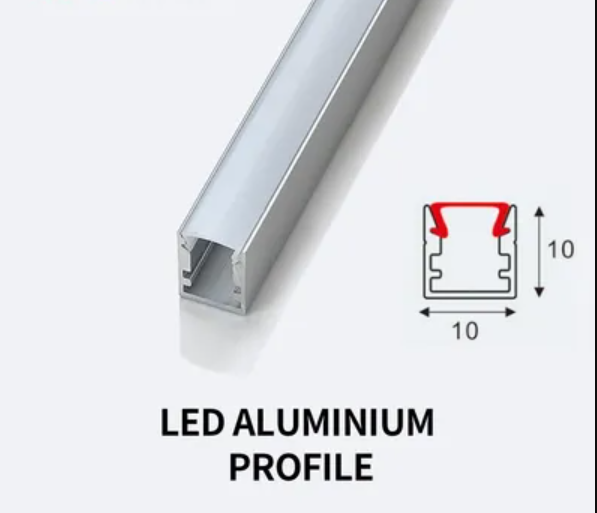

W10*H10mm Surface Mounted U Shape LED Profile Channel for Cabinet Lighting
| Model No | M10-10 (Surface LED Profile) |

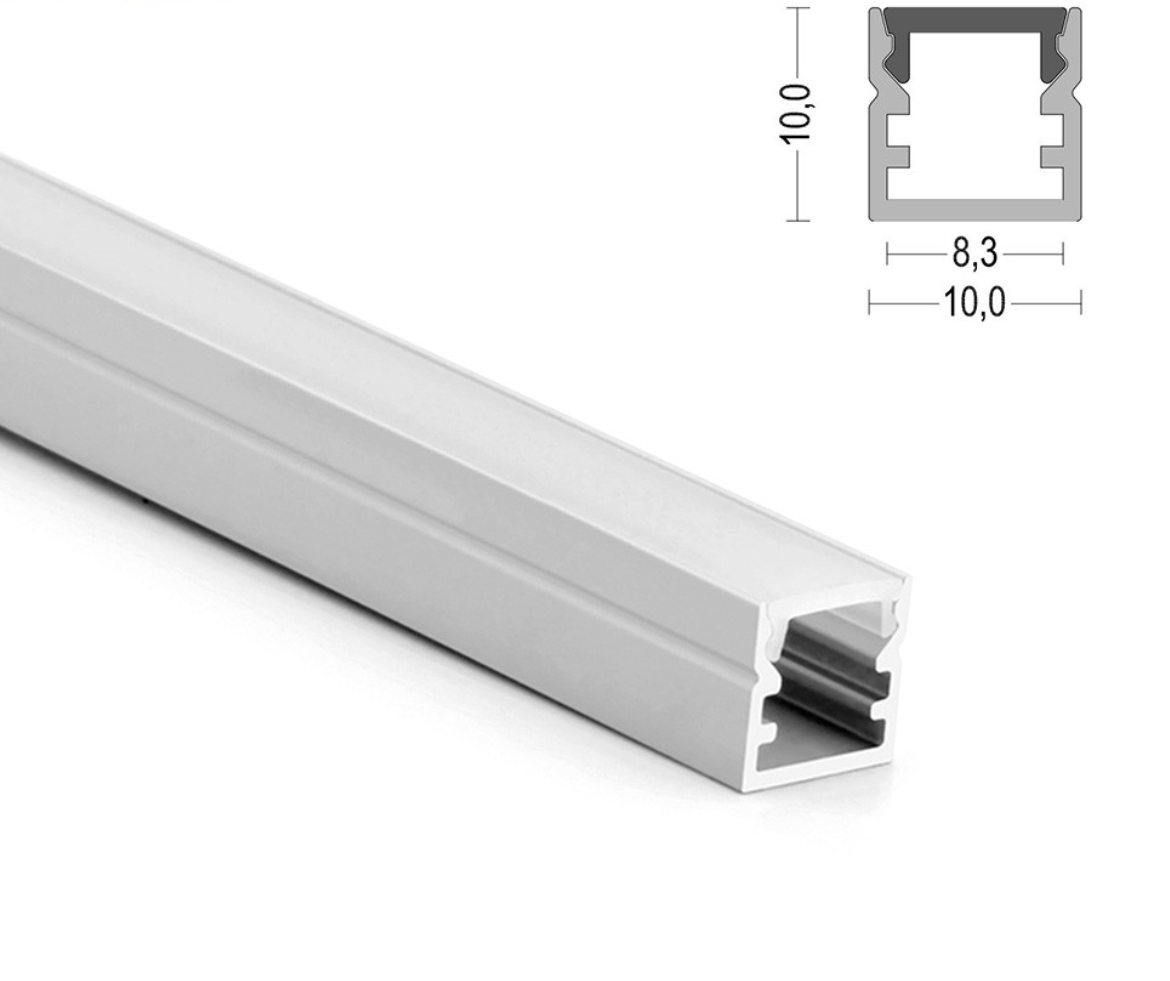

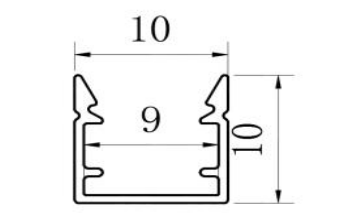

| Dimensions | W10.0*H10.0mm |
| Standard length | 1m/2m/3m/pcs |
| Suitable for led strip | PCB width up to 8mm |
| Material | 6063 T5 Aluminum Alloy |
| Finished color | Silver/Black/white |
| Diffuser material | PC/ PMMA |
| Accessories | PC Cover, End caps, Clips |
| Installation | Surface-mounted |
| Standard Package | Inner Clear PE bag+Carton Box |
| Customized Package | Available on request |
Related Products
Product Description
The W10×H10mm Surface Mounted U Shape LED Profile Channel is a minimalist and practical lighting solution designed for cabinet and furniture lighting. With its compact U-shaped design, it offers easy surface installation without the need for complex recessing. The durable aluminum construction ensures effective heat dissipation, helping extend the lifespan of LED strips. Its frosted diffuser softens the light output, reducing glare and creating a smooth, ambient glow. Ideal for under-cabinet lighting, shelf illumination, and display lighting, this profile adds both functionality and a modern finish to your interior spaces.
LED Strip Channel Features
- 【Compact U-Shape Design】Sleek W10×H10mm profile offers a clean look and is ideal for limited space installations.
- 【Easy Surface Mounting】No recessing required—simple and quick to install on any flat surface.
- 【Durable Aluminum Build】Made from high-quality aluminum for excellent heat dissipation and long-term performance.
- 【Soft, Diffused Light】Comes with a frosted PC diffuser that delivers uniform, eye-friendly illumination.
- 【LED Strip Protection】Protects LED strips from dust, moisture, and physical damage, prolonging their service life.
- 【Wide Compatibility】Suitable for most standard LED strips, making it a versatile choice for various lighting setups.

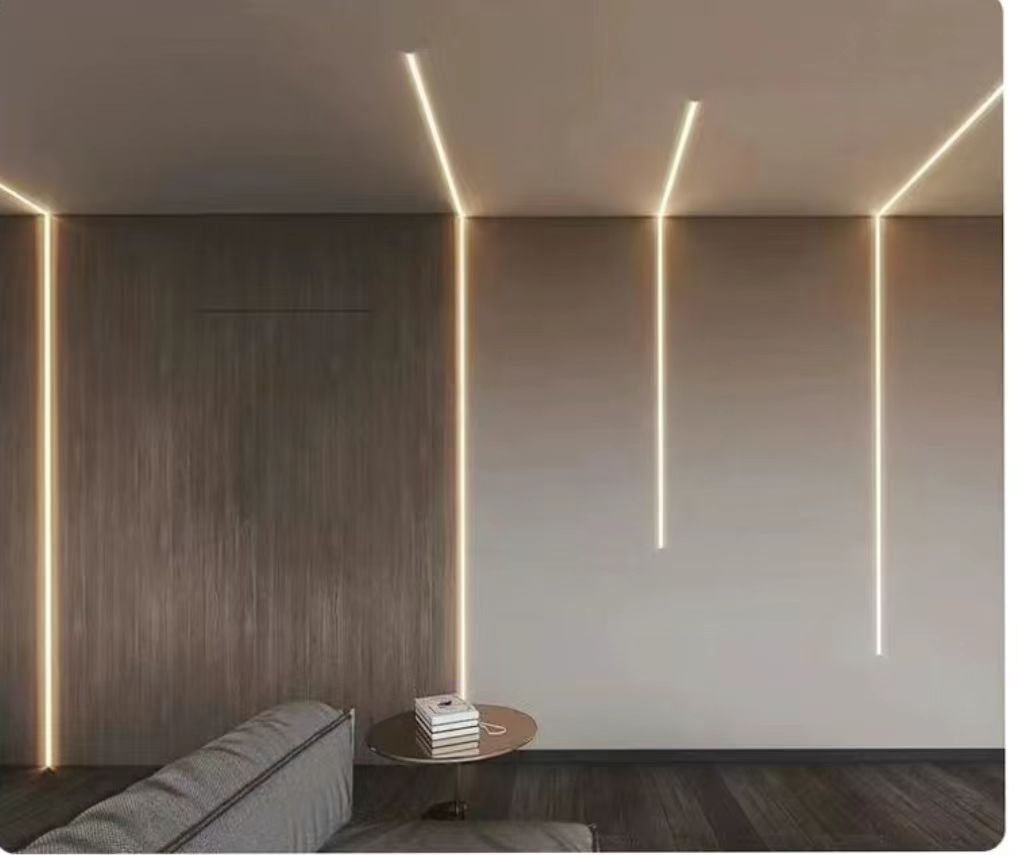

Application Scenes
- Under-Cabinet Lighting – Provides bright, focused illumination for kitchen counters, workbenches, or office desks.
- Bookshelves & Wall Shelves – Highlights books or decorative items while keeping the lighting discreet and stylish.
- Closets & Wardrobes – Enhances visibility in storage spaces with easy-to-install surface lighting.
- Display Cabinets & Showcases – Ideal for illuminating products, collectibles, or merchandise in retail or home displays.
- Furniture Edging – Adds a modern lighting accent to furniture pieces such as TV units, bed frames, or sideboards.
- Hallways & Staircases – Provides soft ambient lighting along walls or stair steps for both safety and style.
Advantages of extrusion
1. The extrusion technique boasts exceptional production versatility, enabling the fabrication of LED strip channels of various shapes and sizes through a mere mold change.
2. With a brief mold replacement time, the process attains elevated levels of production efficiency.
3. Extruded products offer superior dimensional accuracy when compared to rolled and die-forged alternatives, with correspondingly improved surface roughness.
4. The mechanical attributes of extruded LED profile products are commendable, with the extrusion effect facilitating heightened longitudinal properties of LED strip channels following quenching or aging, surpassing those attainable through rolling or die forging.
Standard Length &Customized length
We offer our LED strip channel in standard lengths of 1M, 2M, and 3M per unit. However, we also provide customized lengths to cater to your specific requirements. Additionally, we can cut the LED channel diffuser to the desired length. Our range of accessories includes PC Cover, End Cap, and Clip for added convenience.
How to install the LED channel?
1. Kindly engage the PC Cover by clicking it in.
2. Gently insert the cover into the end.
3. Secure the end cap to complete the enclosure.
4. Proceed to mount the clip onto the LED channels.
