Recessed LED Strip Light Diffuser for Ceiling Wall Profile

Model No M56-15 (Plasterboard LED Profile)

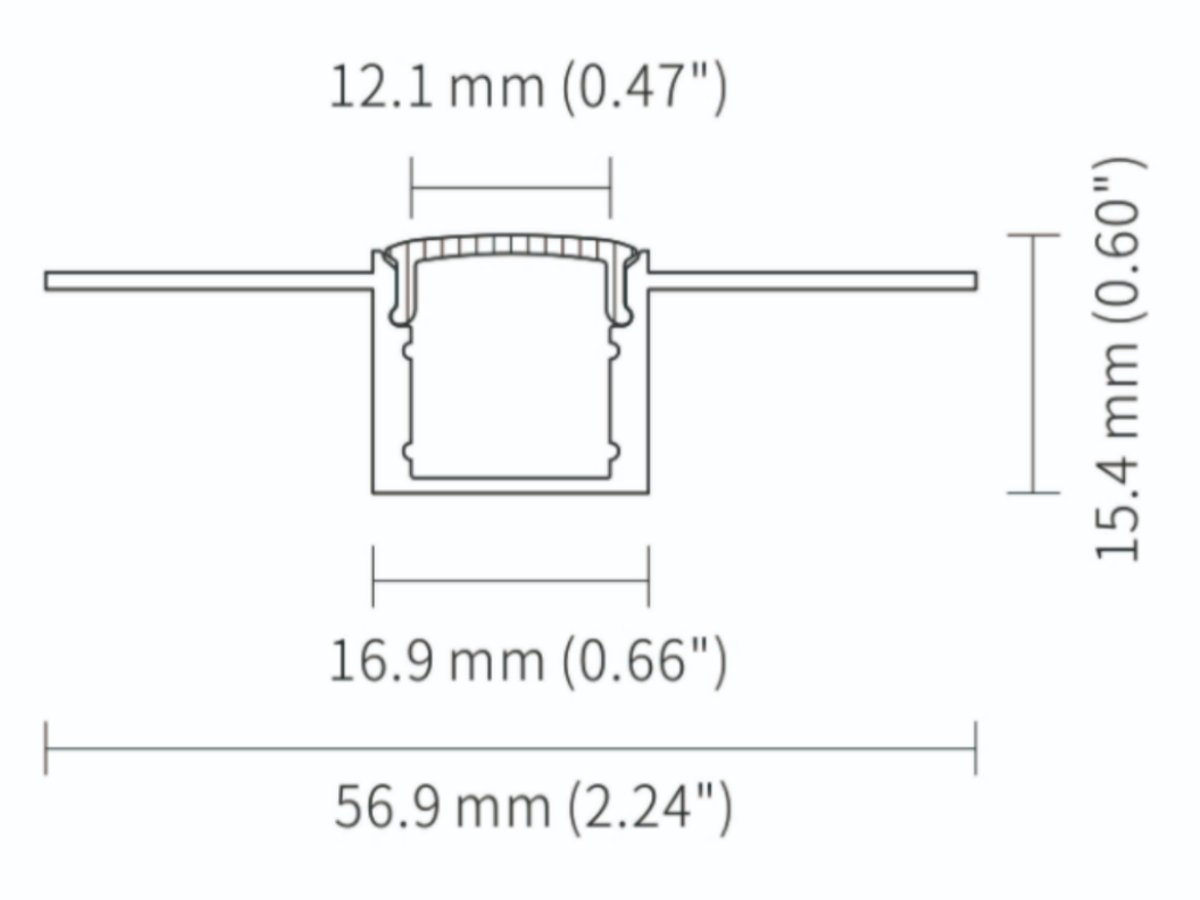

Dimensions W56.9*H15.4mm
Standard length 1m/2m/3m/pcs
Suitable for led strip PCB width up to 12mm
Material 6063 T5 Aluminum Alloy
Finished color Silver/Black/white

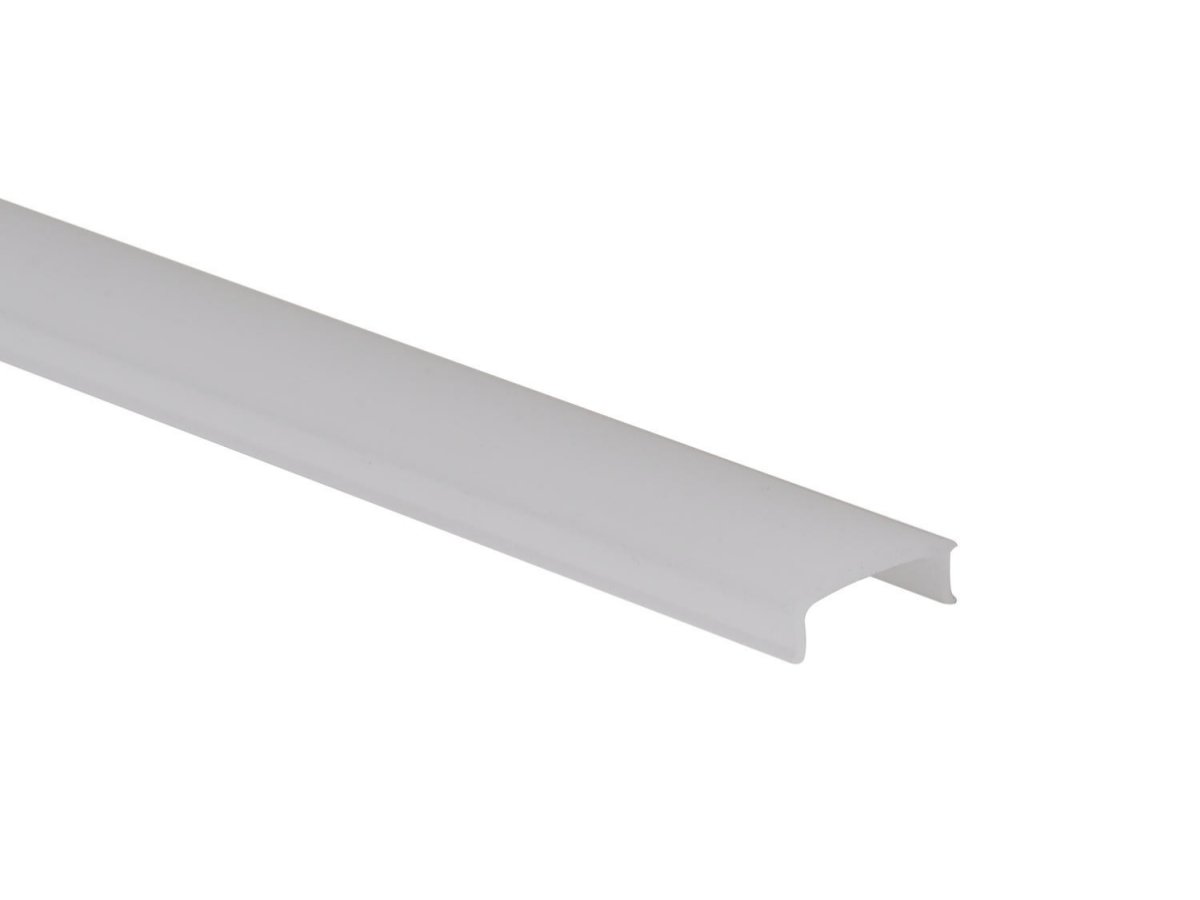

Diffuser material PC/ PMMA
Accessories PC Cover, End caps, Clips
Installation Recessed-Mounted
Standard Package Inner Clear PE bag+Carton Box
Customized Package  Available on request


Product Description

The Plaster LED profile is designed with two trims that facilitate the installation of LED strip channels into concrete walls, ensuring a strong and durable bond. Additionally, the aluminum channel of the LED profile provides reliable protection against damage and breakage.

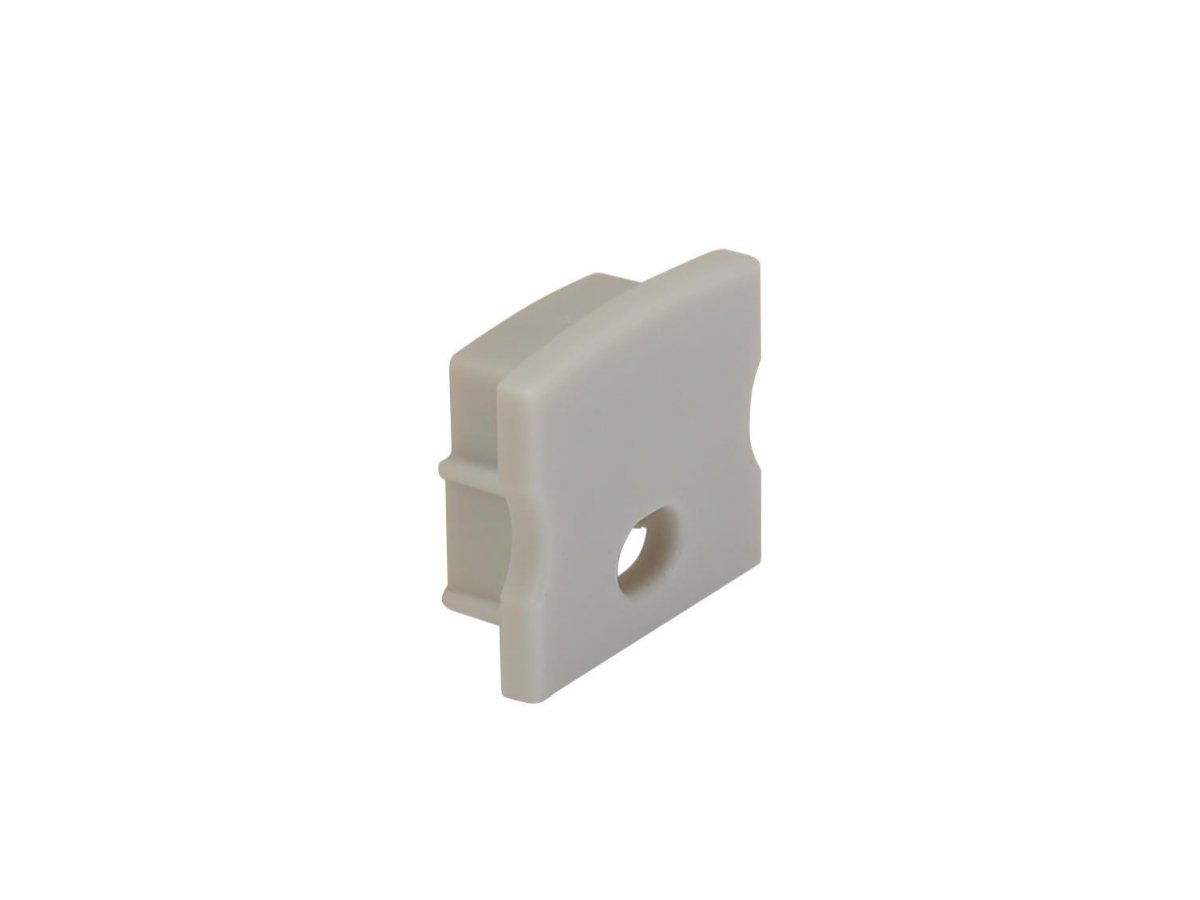

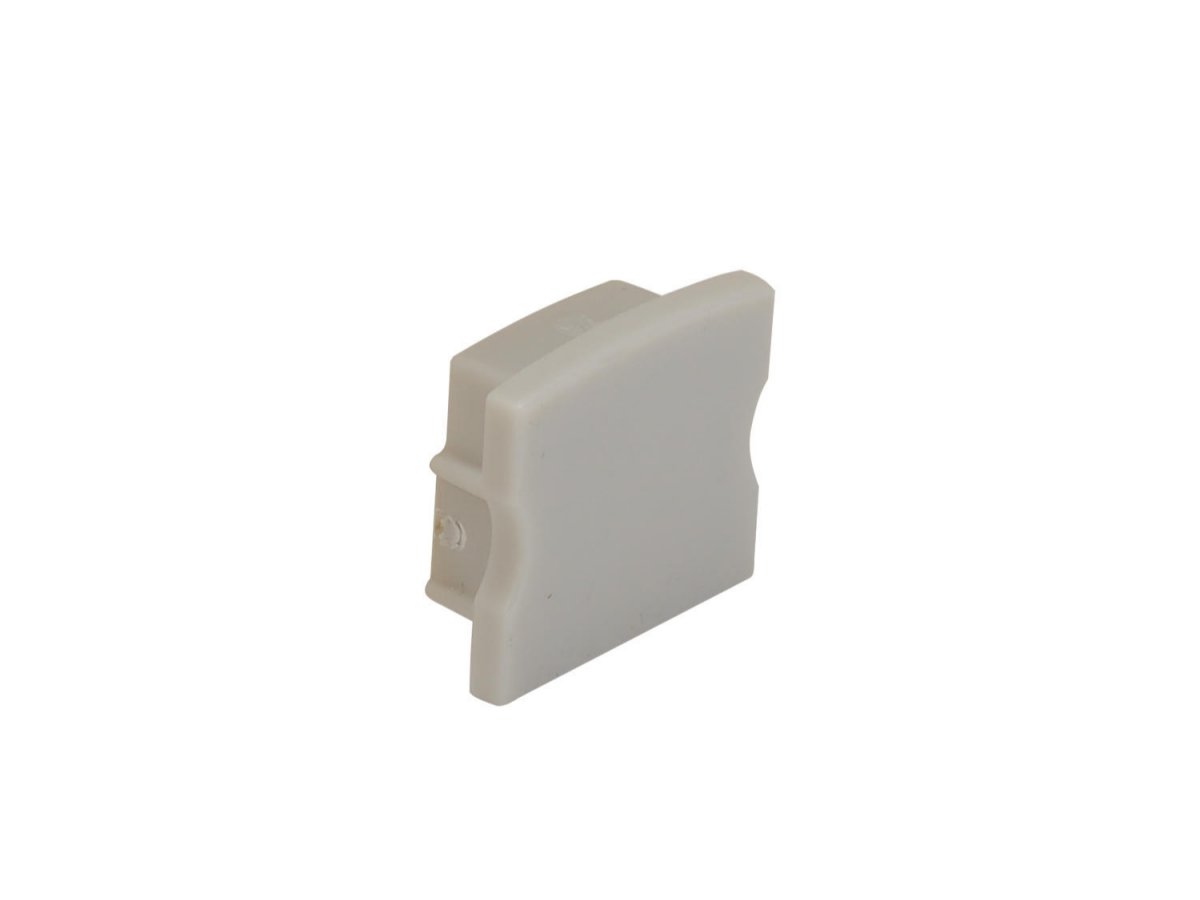

Our M56-15 model LED diffuser features a high-quality anodized finish that offers maximum protection against rust, corrosion, and other environmental factors. The LED channels are also resistant to moisture and dust, providing optimal performance and longevity. For even greater protection and control over light diffusion, the LED strip mounting channel is equipped with end caps that enclose the LED profiles.

Moreover, LED profiles are an essential component of modern lighting systems, providing both aesthetic appeal and functional benefits. With their sleek and stylish designs, LED profiles can be seamlessly integrated into any interior or exterior space. They also offer significant advantages, such as enhanced lighting performance, energy efficiency, and longevity, making them an ideal choice for residential, commercial, and industrial applications. With their versatility and reliability, LED profiles are a smart investment for any lighting project.


LED Strip Channel Features

1. Suitable for both flexible and rigid LED strip lighting.
2. Made from 6063 aluminum alloy, these LED profiles offer exceptional heat dissipation and diffusing properties.
3. The aluminum LED profiles undergo a durable anodization surface treatment for added longevity.
4. Provides both heat dissipation and physical protection for LED strip lighting.
5. The LED channel diffusers reduce glare while creating a soft lighting effect.
6. The high-quality alloy profile offers superior protection for LED strip lighting.
7. Featuring two trims, these LED profiles are easy to install into concrete walls for strong bonding.

Application Scenes

– Offices LED Lighting
– Meeting room LED Lighting LED strip diffusers
– Supermarket decoration lighting
– Home LED lighting channle
– Stores shelf trimless recessed linear LED lighting


Advantages of extrusion

1. The extrusion method has great production flexibility, and LED strip channel with different shapes and sizes can be produced only by changing the mold.
2. Short mold replacement time, high production efficiency,
3. The dimensional accuracy of extruded aluminum channel for LED strips are far better than that of rolling and die forging, and the surface roughness is better.
4. The mechanical properties of the extruded LED diffuser channlel are good, and the extrusion effect is that the longitudinal properties of the products after quenching or aging are higher than those of rolling and die forging.

Standard Length &Customized length

Our trimless recessed linear LED lighting standard length is 1M/2M/3M each piece, but we can also do customized aluminum channel LED length for you and cut the length what you need, accessories include PC Cover+End Cap


How to install the LED channel?

1. Click the PC Cover
2.Push in the cover in the end
3.Enclosed the end cap on LED channel system
