Home/Suspended Led Profile/Pendant Mount LED Lighting Channel with PC Diffuser Cover

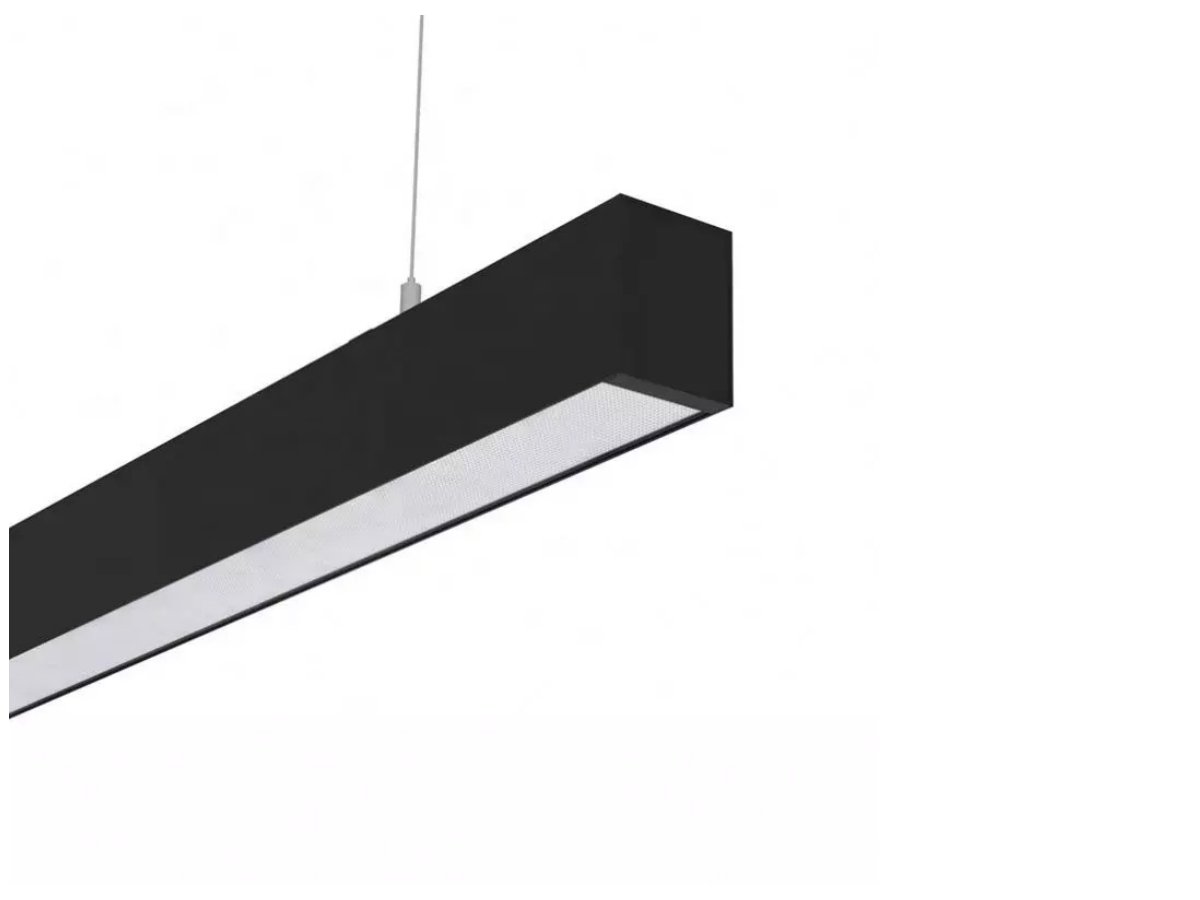

Pendant Mount LED Lighting Channel with PC Diffuser Cover

Model No M80-75 (Suspended LED Profile)
Dimensions W80.0*H75.0mm
Standard length 1m/2m/3m/pcs
Suitable for led strip PCB width up to 30mm
Material 6063 T5 Aluminum Alloy
Finished color Silver/Black/white
Diffuser material PC/ PMMA
Accessories PC Cover, End caps, Clips
Installation Pendant / Surface Mounted
Standard Package Inner Clear PE bag+Carton Box
Customized Package  Available on request


Product Description

Suspending strip channels are affixed to the ceiling to install LED aluminum channels that are designed for aesthetic purposes. These LED light channels are a fusion of state-of-the-art technology and artistic aesthetics.

Using LED strip lights without any additional measures can make them prone to damage and yellowing from dust and physical contact. However, by using the M80-75 extruded LED channel heat sink and aluminum LED profiles, the LED strip channels can be better protected. Additionally, the use of LED diffusers can enhance the appearance and performance of the lighting, creating a more comfortable and visually appealing experience.


LED Strip Channel Features

1. For flexible or hard LED strip lights
2. 6063 aluminum alloy LED profile, excellent heat sinking suspended LED channel
3. Durable Anodize Surface treatment LED strip channel
4. Heat sink and physical protection to the LED strips
5. The deep regressed diffuser reduce the light glare
6.Easy to install the LED channels with pc cover, end cap, clip

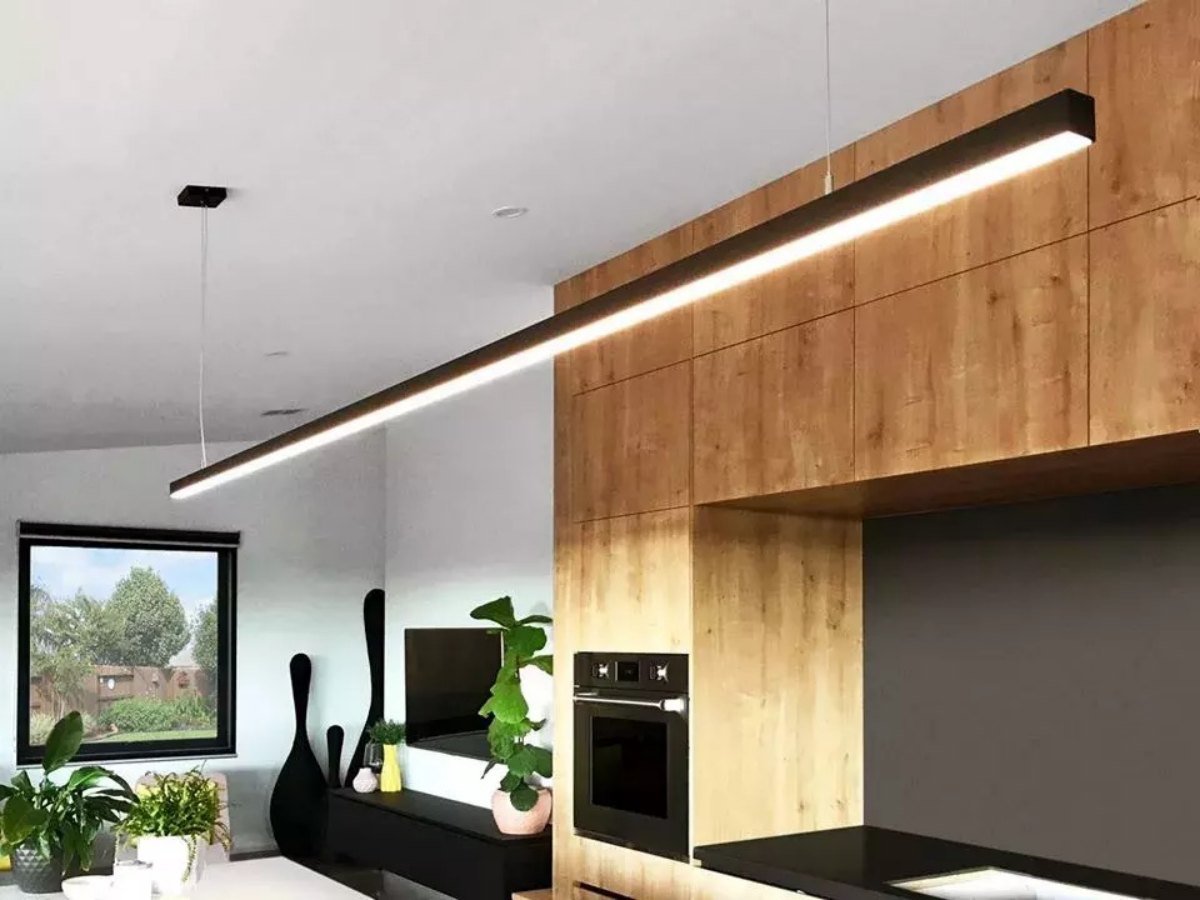

Application Scenes

– For Embedded LED linear ceiling light
– For Suspended Ceiling Lighting
– For Indoor LED Lighting channel
– For Corridor Lighting LED aluminum channel
– For Shopping Mall Lighting, Store Shelf LED linear ceiling light


Advantages of extrusion

1. The extrusion is made from high quality aviation 6063-T5 aluminum alloy with double-anodized
2. The extrusion method has great production flexibility, and LED profiles with different shapes and sizes can be produced only by changing the mold.
3. Short mold replacement time, high production efficiency,
4. The dimensional accuracy of extruded aluminum LED channel is far better than that of rolling and die forging, and the surface roughness is better.
5. The mechanical properties of the extruded products are good, and the extrusion effect is that the longitudinal properties of the products after quenching or aging are higher than those of rolling and die forging.

Standard Length &Customized length

Our linear LED pendant light standard length is 1M/2M/3M each piece, but we can also do customized aluminum LED profile length for you and cut the length what you need, accessories include PC Cover+End Cap+Clip

How to install the LED channel?

1. Click the PC Cover
2.Push in the cover in the end
3.Enclosed the end cap
4.Mount clip on the LED strip channel diffuser
