Surface Mounted Suspending LED Diffuser Channels Profile

Model No  M45-42 (Suspended LED Profile)

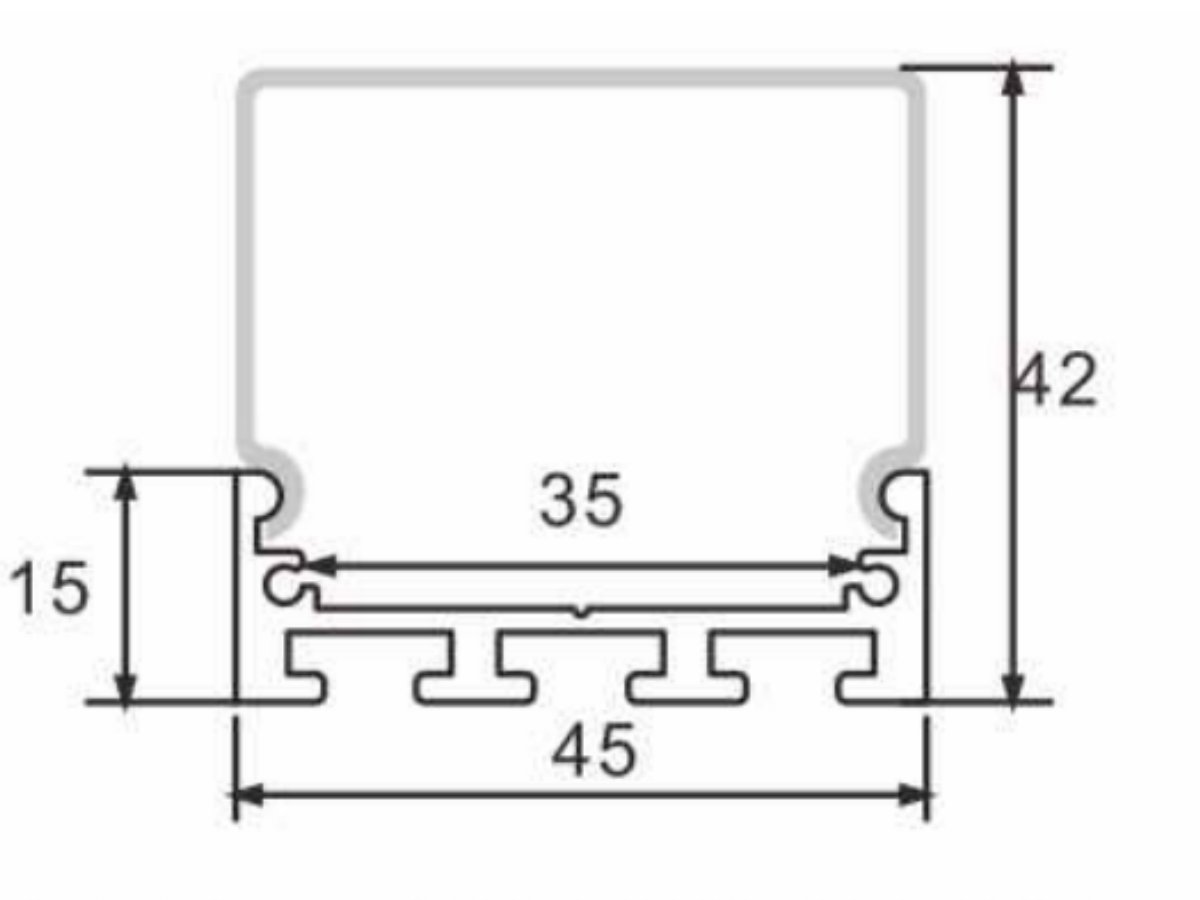

Dimensions W45.0*H42.0mm
Standard length 1m/2m/3m/pcs
Suitable for led strip PCB width up to 30mm
Material 6063 T5 Aluminum Alloy
Finished color Silver/Black/white
Diffuser material PC/ PMMA
Accessories PC Cover, End caps, Clips

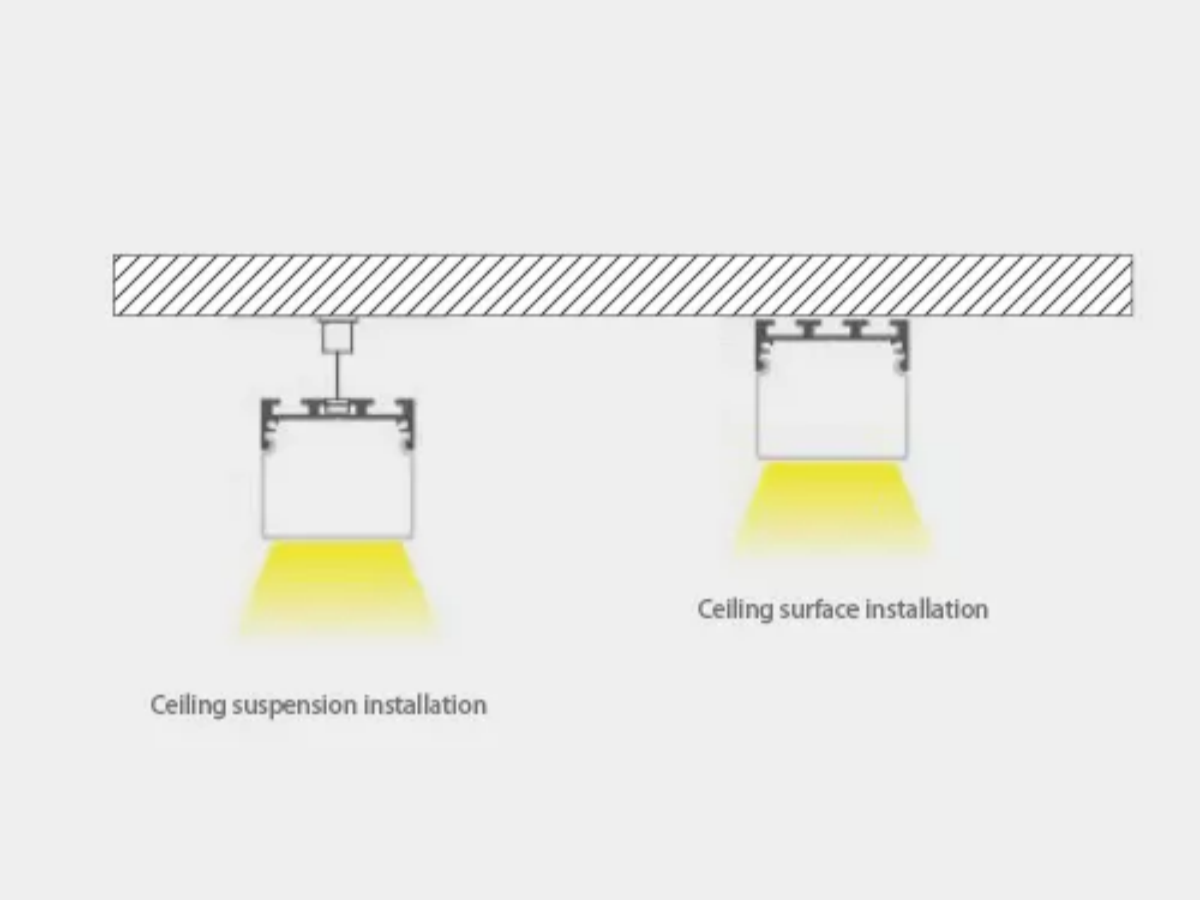

Installation Pendant / Surface Mounted
Standard Package Inner Clear PE bag+Carton Box
Customized Package  Available on request


Product Description

The indoor main lighting solution involves a suspended surface LED diffuser that comes with a high-quality pc cover. The LED strip is flexible and fits into a top-notch 6063 T5 LED aluminum channel. Additionally, a heat sink and diffuser protect the LED strip light.

By using suspended LED channels with pc diffuser heat sinks, you can achieve anti-glare and soft light effects. Furthermore, the LED strip channel provides protection against yellowing, ensuring that the light bar remains safe and lasts longer.

For those interested in designing their home or project, the M45-42 model suspending mounted aluminum LED profile is an excellent choice. The LED diffuser comes in standard lengths of 1 meter, 2 meters, and 3 meters. However, we also offer customized lengths upon reques


LED Strip Channel Features

1. For flexible or hard LED strip lights
2. 6063 aluminum alloy LED profile, excellent heat sinking LED channels
3. Durable Anodize Surface treatment LED strip channel
4. Heat sink and physical protection to the LED strips
5. The deep regressed diffuser reduce the light glare
6.Easy to install the LED channels with pc cover, end cap, clip

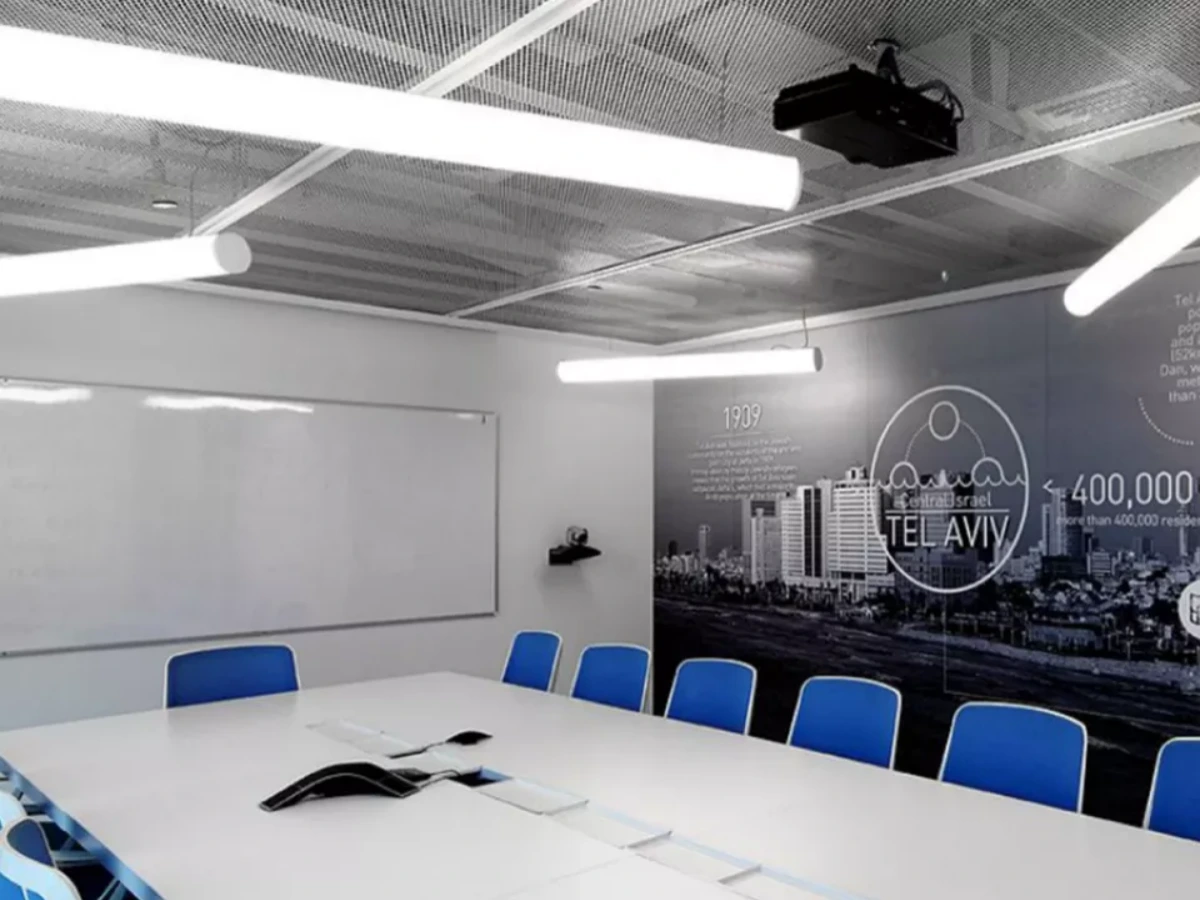

Application Scenes

– For Embedded Ceiling Lighting

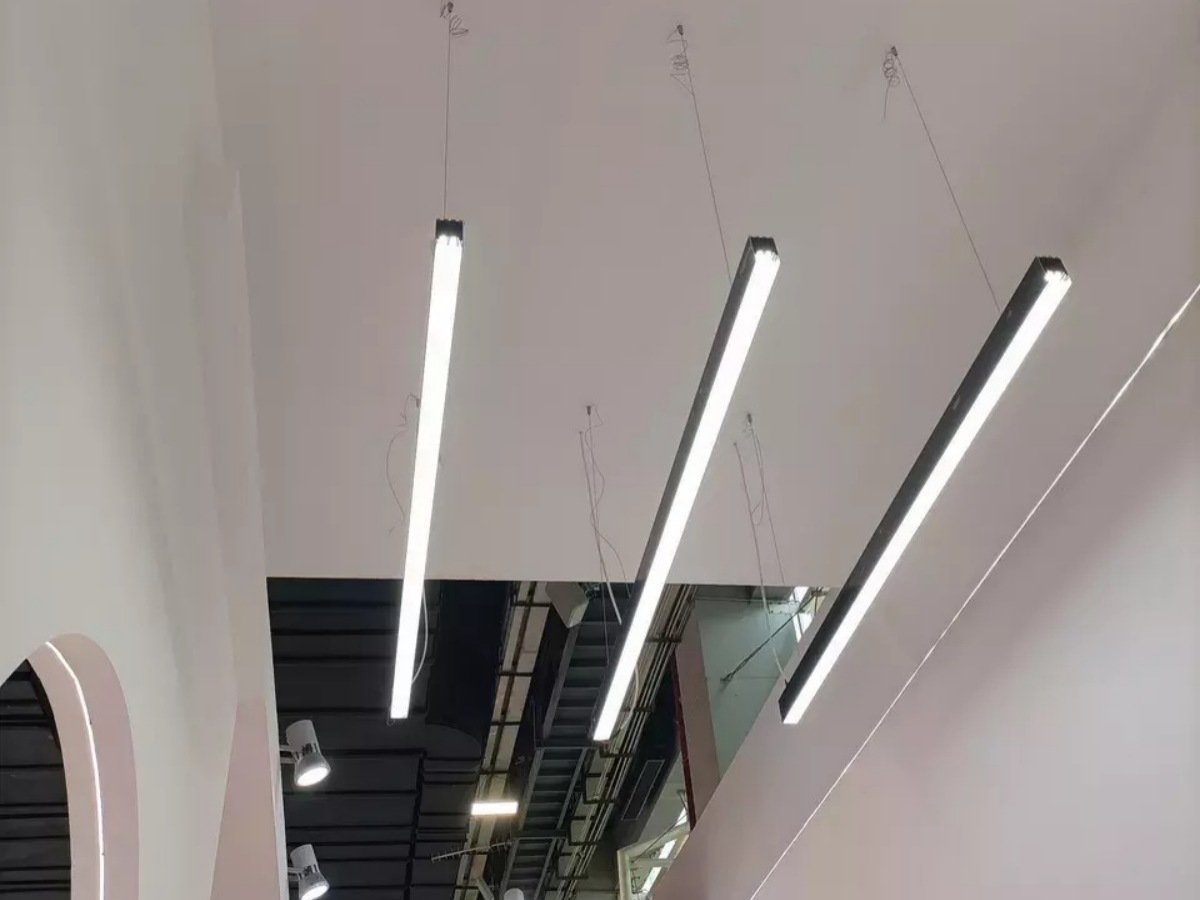

– For Linear LED pendant light
– For Indoor LED Lighting channel

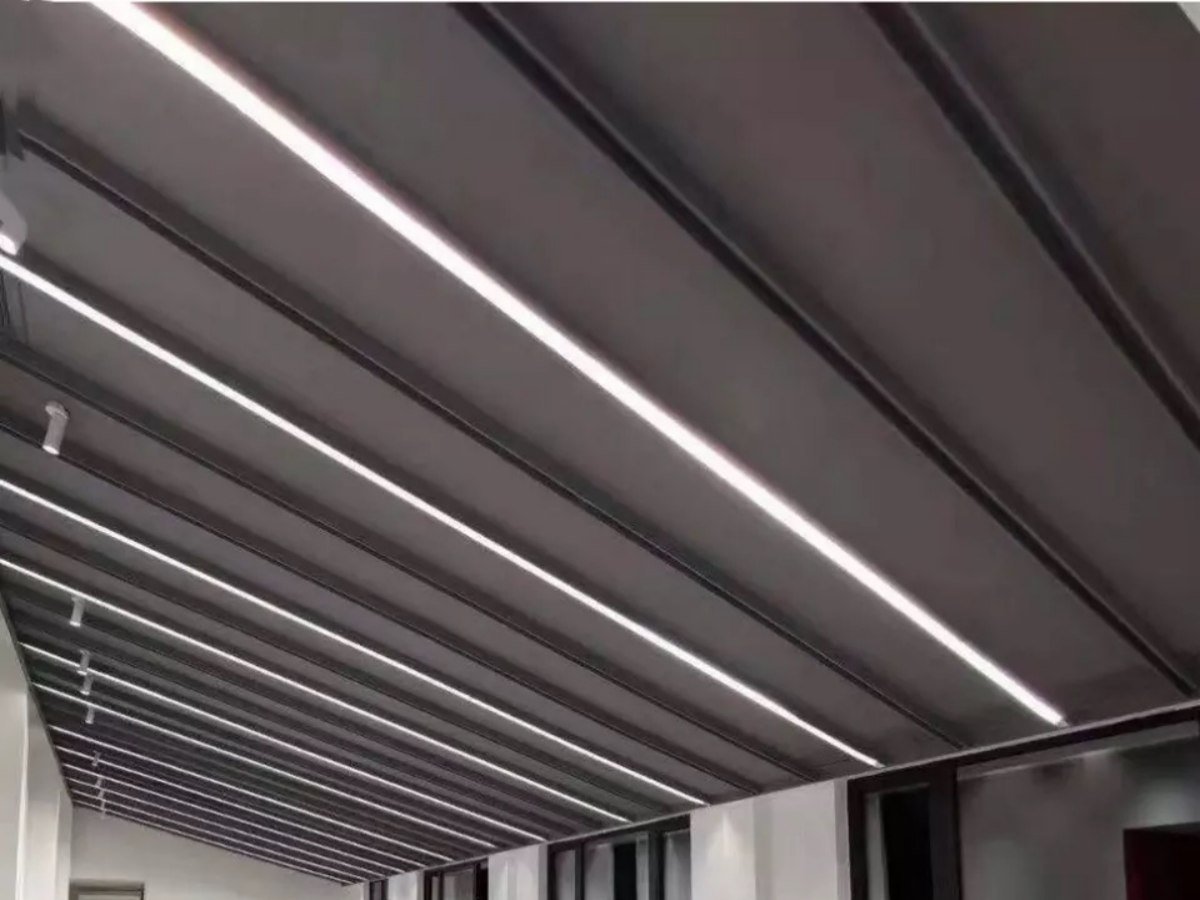

– For Corridor Lighting LED aluminum channel
– For Shopping Mall Lighting, Store Shelf channel Lighting.


Advantages of extrusion

1. The extrusion is made from high quality aviation 6063-T5 aluminum alloy with double-anodized
2. The extrusion method has great production flexibility, and LED profiles with different shapes and sizes can be produced only by changing the mold.
3. Short mold replacement time, high production efficiency,
4. The dimensional accuracy of extruded aluminum LED channel is far better than that of rolling and die forging, and the surface roughness is better.
5. The mechanical properties of the extruded products are good, and the extrusion effect is that the longitudinal properties of the products after quenching or aging are higher than those of rolling and die forging.

Standard Length &Customized length

Our LED diffuser channel standard length is 1M/2M/3M each piece, but we can also do customized aluminum LED profile length for you and cut the length what you need, accessories include PC Cover+End Cap+Clip

How to install the LED channel?

1. Click the PC Cover
2.Push in the cover in the end
3.Enclosed the end cap
4.Mount clip on the LED strip channel diffuser
