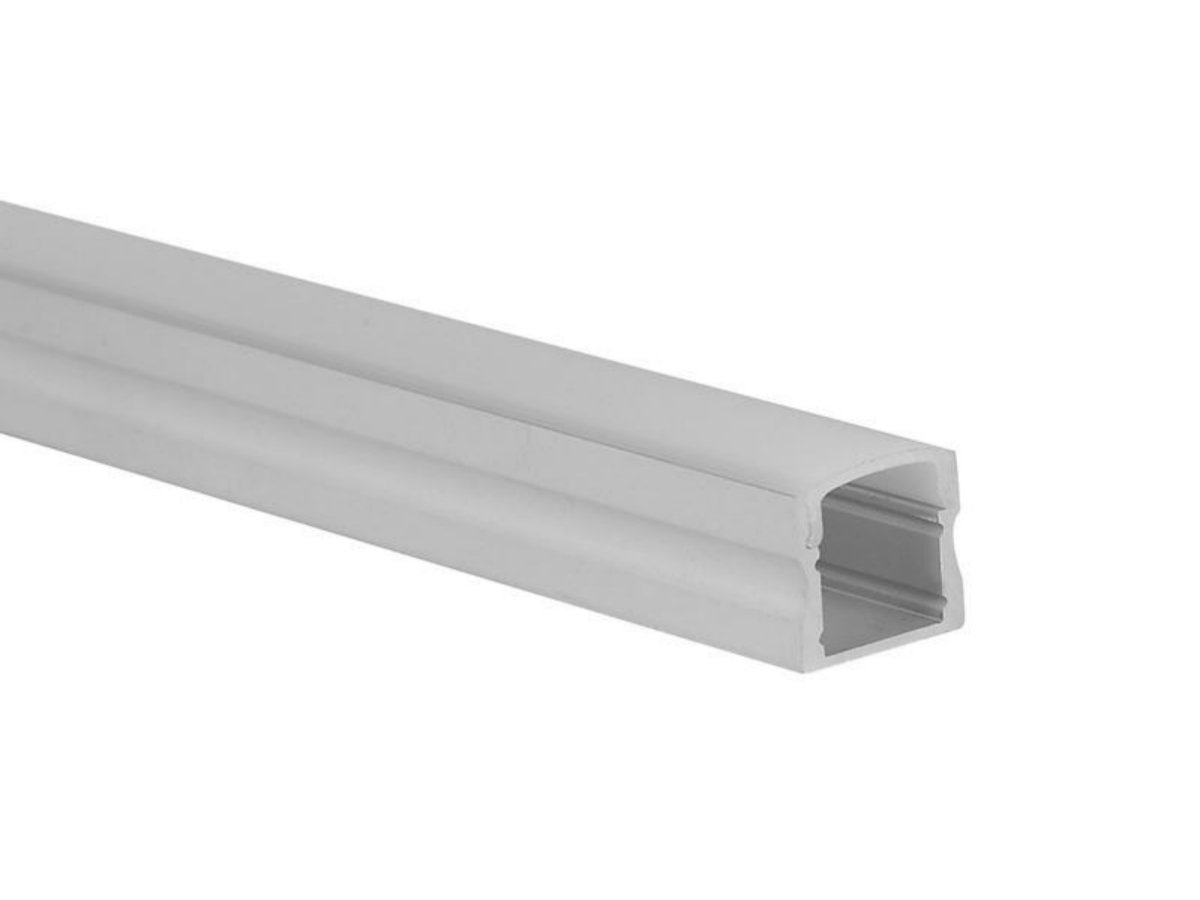

Square LED Strip Mounting Channel Customized LED Diffusers

Model No M17-15 (Surface LED Profile)
Dimensions W17.0*H15.0mm
Standard length 1m/2m/3m/pcs
Suitable for led strip PCB width up to 8mm
Material 6063 T5 Aluminum Alloy
Finished color Silver/Black/white
Diffuser material PC/ PMMA
Accessories PC Cover, End caps, Clips
Installation Surface-mounted
Standard Package Inner Clear PE bag+Carton Box
Customized Package  Available on request


Product Description

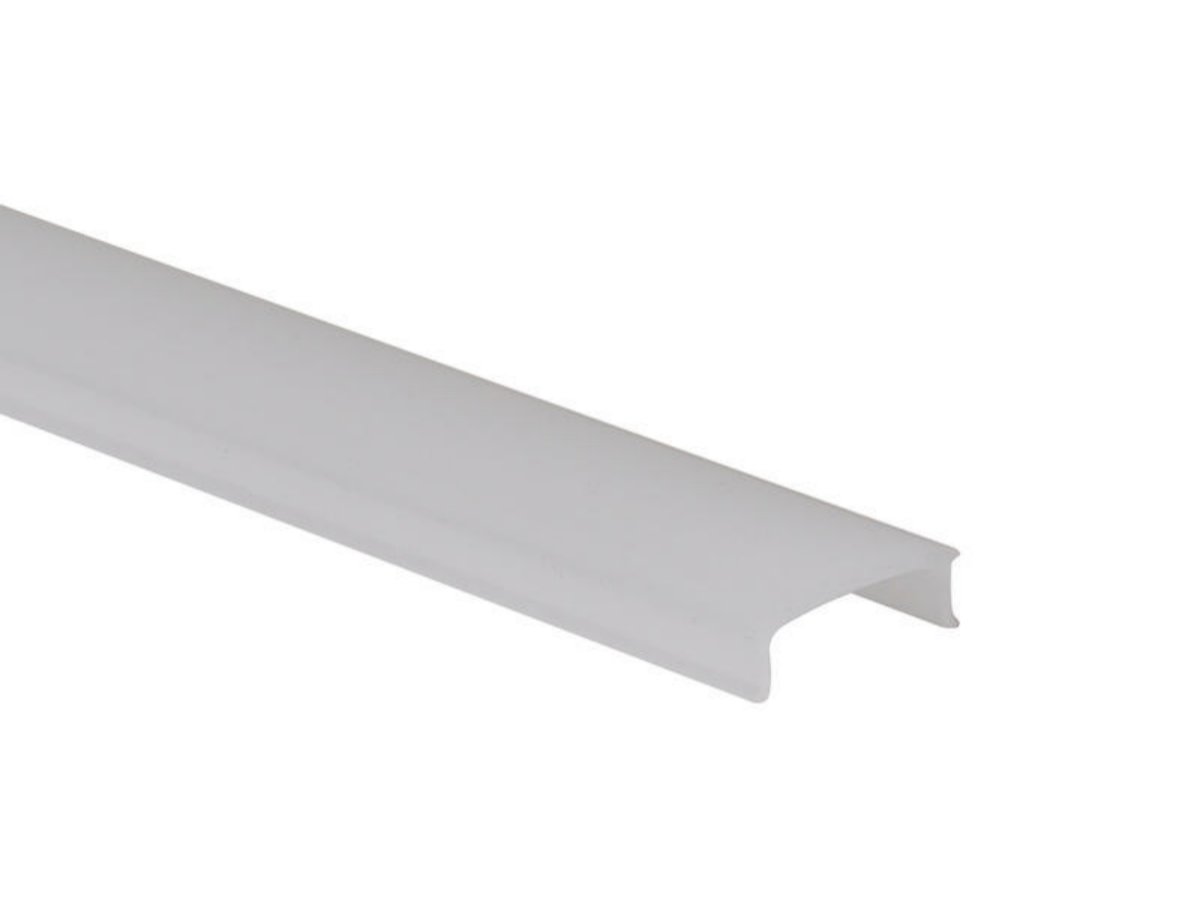

The high-quality LED light channels come equipped with an extrusion LED profile to accommodate a flexible LED strip. To protect the strip lights, a heat sink and LED diffuser are used. There’s a variety of cover options available, including black, opal, and transparent PC covers. These polycarbonate covers were developed in Japan and offer superior protection. Additional accessories like mounting clips and standard polypropylene end caps are also available. These end caps safeguard the LED light output from foreign objects that may cause damage or dimming. Installing the extrusion LED channeling housing LED diffuser channel is a straightforward process. By pushing the cover, enclosing the end caps, and mounting clips onto the extruded LED strip mounting channel aluminum LED profile, it’s easy and secure to attach LED profiles.


LED Strip Channel Features

1. The product is engineered to accommodate both flexible LED strips and rigid bars.
2. Constructed from 6063 aluminum alloy, it boasts exceptional heat dissipation capabilities.
3. Its anodized surface treatment is both robust and long-lasting.
4. The flanks are perforated along the edge, enabling secure bonding with building materials.
5. Its design effectively safeguards delicate LED strip lights from physical contact and dust accumulation.
6. The LED channel is endowed with an anodized finish that further enhances protection of the LED strip.

Application Scenes

● LED channels for kitchen illumination
● LED strip channels for living room lighting
● LED diffusers for bedroom illumination
● Residential building decor lighting utilizing LED technology
● Exhibition room lighting


Advantages of extrusion

1. The extrusion process offers tremendous production adaptability, enabling the fabrication of LED strip channels with varying dimensions and shapes, simply by manipulating the mold.

2. With swift mold replacement and elevated production efficacy, the extrusion method boasts a compelling advantage.

3. In contrast to rolling and die forging techniques, extruded products exhibit superior dimensional precision and surface texture.

4. Extruded LED profile products demonstrate favorable mechanical properties. Furthermore, the extrusion process enhances the longitudinal characteristics of the LED strip channel post quenching or aging, surpassing those achievable via rolling and die forging methods.

Standard Length &Customized length

Our LED strip channels come in standard lengths of 1 meter, 2 meters, and 3 meters per piece. However, we can tailor the length to your specific requirements and precisely cut the LED channel diffuser to your desired dimensions. In addition, our range of accessories comprises PC cover, end cap, and clip.

How to install the LED channel?

1. Click the PC Cover
2.Push in the cover in the end
3.Enclosed the end cap
4.Mount clip on the LED channels
