Round LED Profile | with PC Diffused Cover Suspended Mount

Model No M20-19 (LED Linear Light)

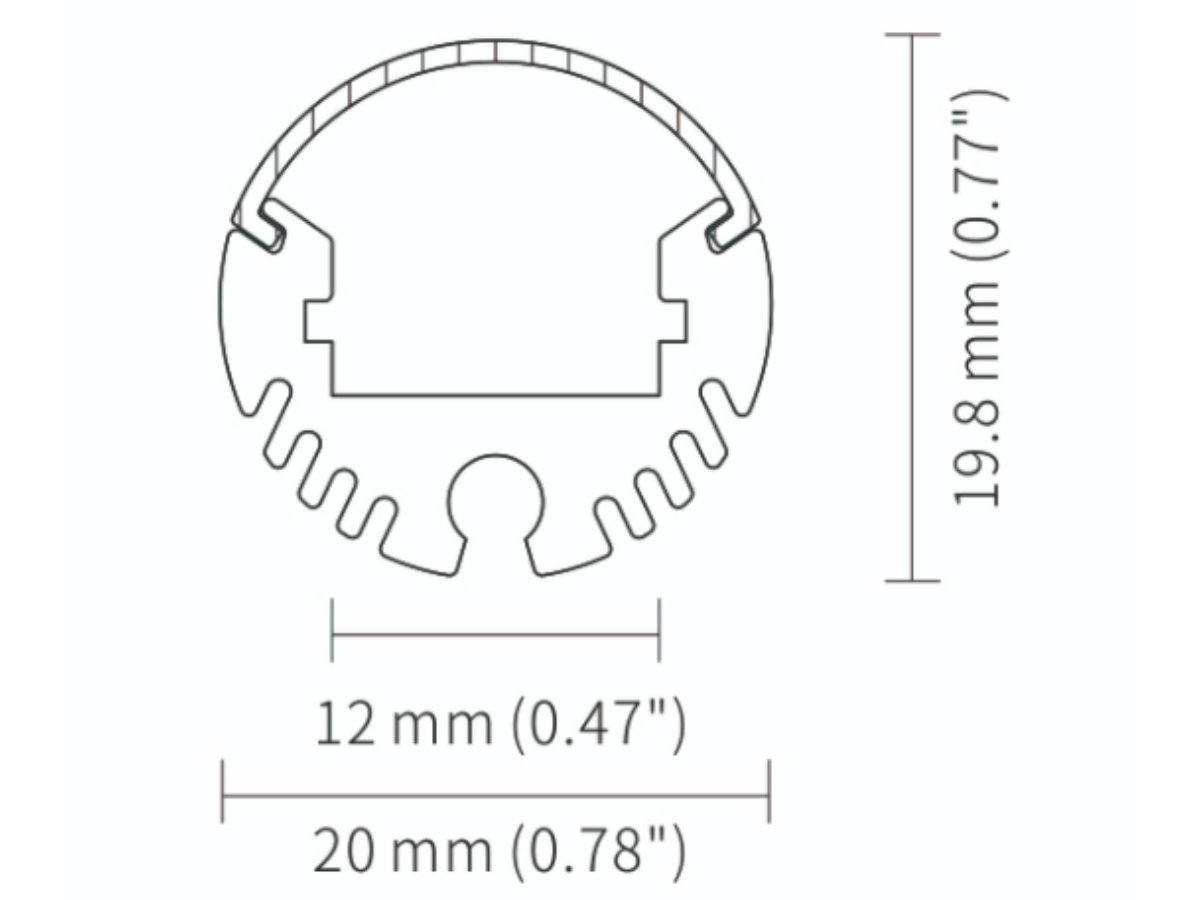

Dimensions W20*H19.8mm
Standard length 1m/2m/3m/pcs
Suitable for led strip PCB width up to 12mm
Material 6063 T5 Aluminum Alloy
Finished color Silver/Black/white
Diffuser material PC/ PMMA

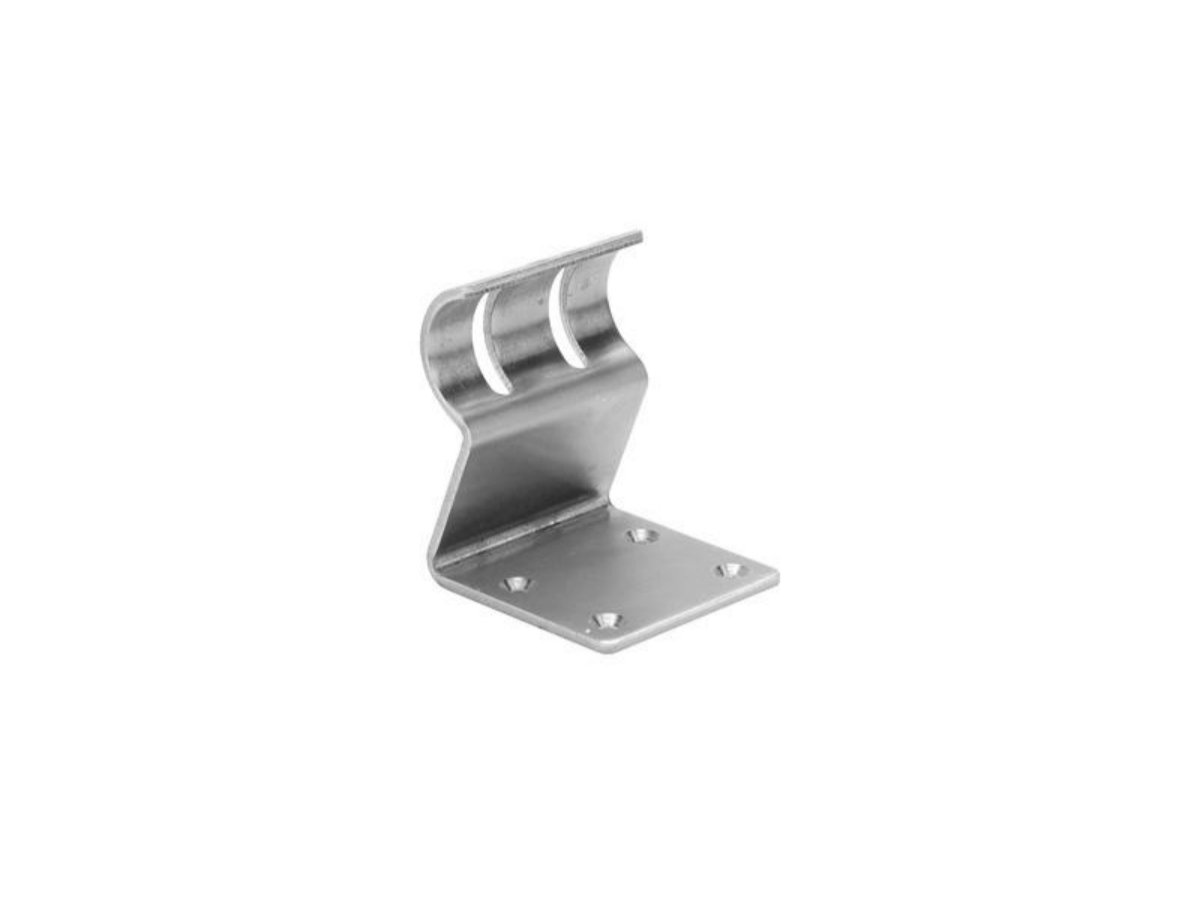

Accessories PC Cover, End caps, Clips
Installation Surface/ Suspended Mounted
Standard Package Inner Clear PE bag+Carton Box
Customized Package  Available on request


Product Description

The round aluminum LED profile is commonly used for indoor decorative lighting purposes. LED channels can be installed in two ways: either by surface mounting or by suspending them. The surface of the extrusion LED profiles is anodized to provide strong corrosion resistance, which effectively protects the lamp strip from deformation and reduces glare.

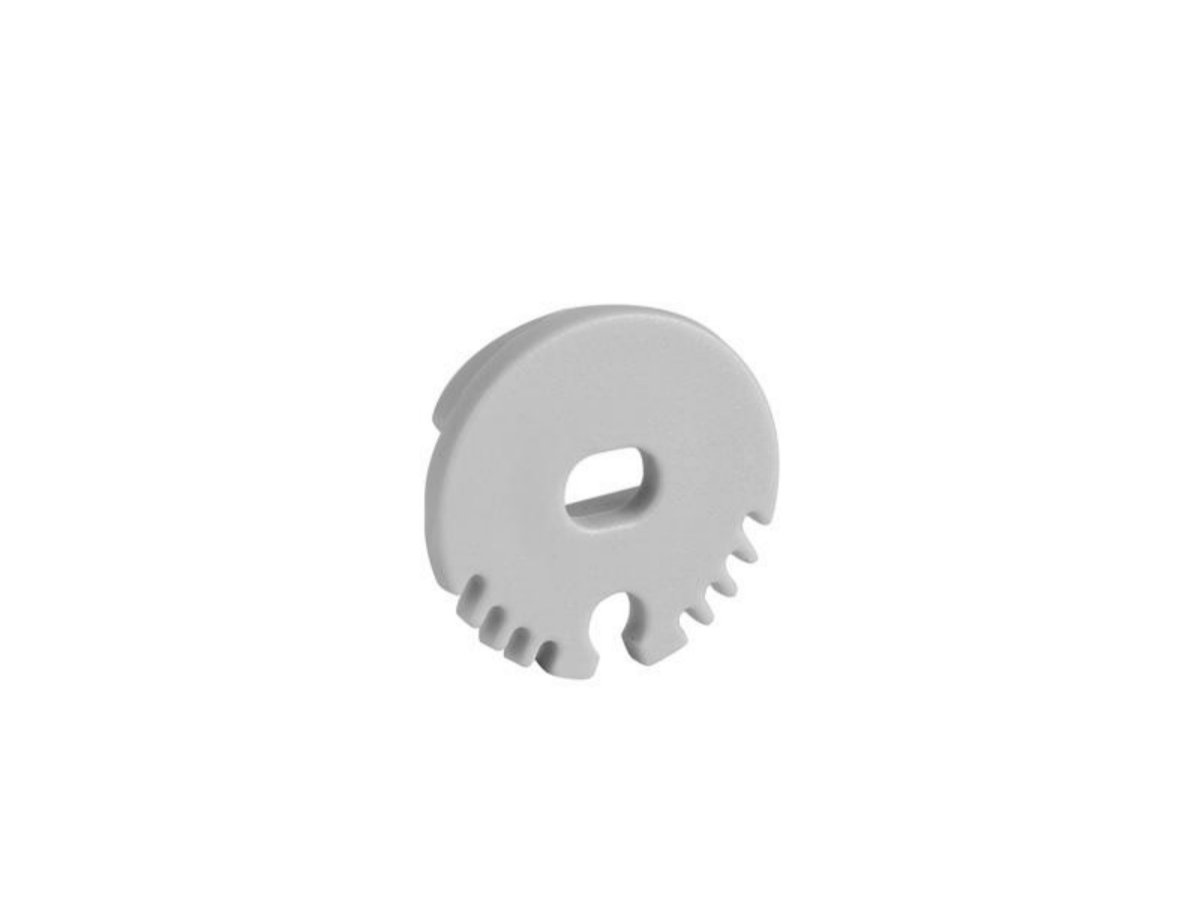

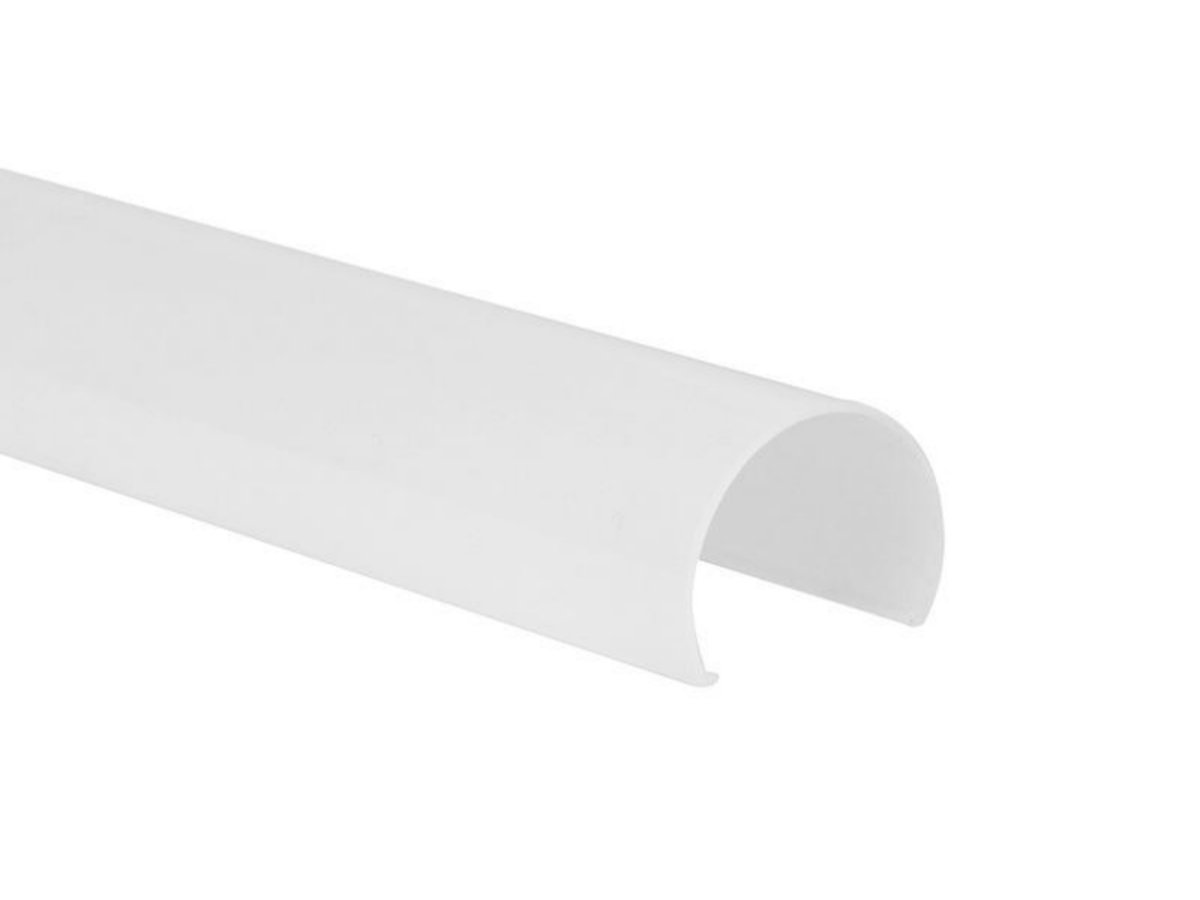

To further safeguard the LED strip and control light diffusion, LED channel diffusers are utilized to prevent damage and discoloration of the lights. Additionally, end caps are offered as part of the LED channel system to enclose the LED channeling. These end caps protect the extrudate from foreign objects that can damage and reduce the strip’s light output.


LED Strip Channel Features

1. This applies to both bendable and rigid LED lights.
2. A superior LED profile assists in heat dissipation, allowing the LED to have a longer lifespan and reduced brightness degradation.
3. The LED strip channel diffuser has a sturdy anodized surface treatment.
4. It offers heat sink and physical shielding to the LED strips, guarding against dust.
5. The diffuse cover of the LED channel produces various lighting effects.
6. Installing the LED channels with a PC cover and end cap is simple.


Application Scenes

● LED channel diffusers designed for floor and ground lighting purposes.
● LED light channels specially designed for stairs and glass-cases.
● Interior lighting channels for general indoor lighting needs.
● LED channels suitable for corridor lighting applications.
● Channels designed for living room lighting purposes.


Advantages of extrusion

1. The extrusion is made from high quality aviation 6063-T5 aluminum alloy with double-anodized
2. The extrusion method has great production flexibility, and aluminum LED profiles with different shapes and sizes can be produced only by changing the mold.
3. Short mold replacement time, high production efficiency,
4. The dimensional accuracy of extruded LED profile is far better than that of rolling and die forging, and the surface roughness is better.
5. The mechanical properties of the extruded LED diffuser channels are good, and the extrusion effect is that the longitudinal properties of the products after quenching or aging are higher than those of rolling and die forging.

Standard Length &Customized length

Our aluminum LED channels standard length is 1M/2M/3M each piece, but we can also do customized LED diffusers length for you and cut the length what you need, accessories include PC Cover+End Cap

How to install the LED channel?

1. Click the PC Cover
2.Push in the cover in the end
3.Enclosed the end cap on LED channel track
