LED Channel | Plaster LED Profile for Inner Corner Wall

Model No M53-15 (Plasterboard LED Profile)

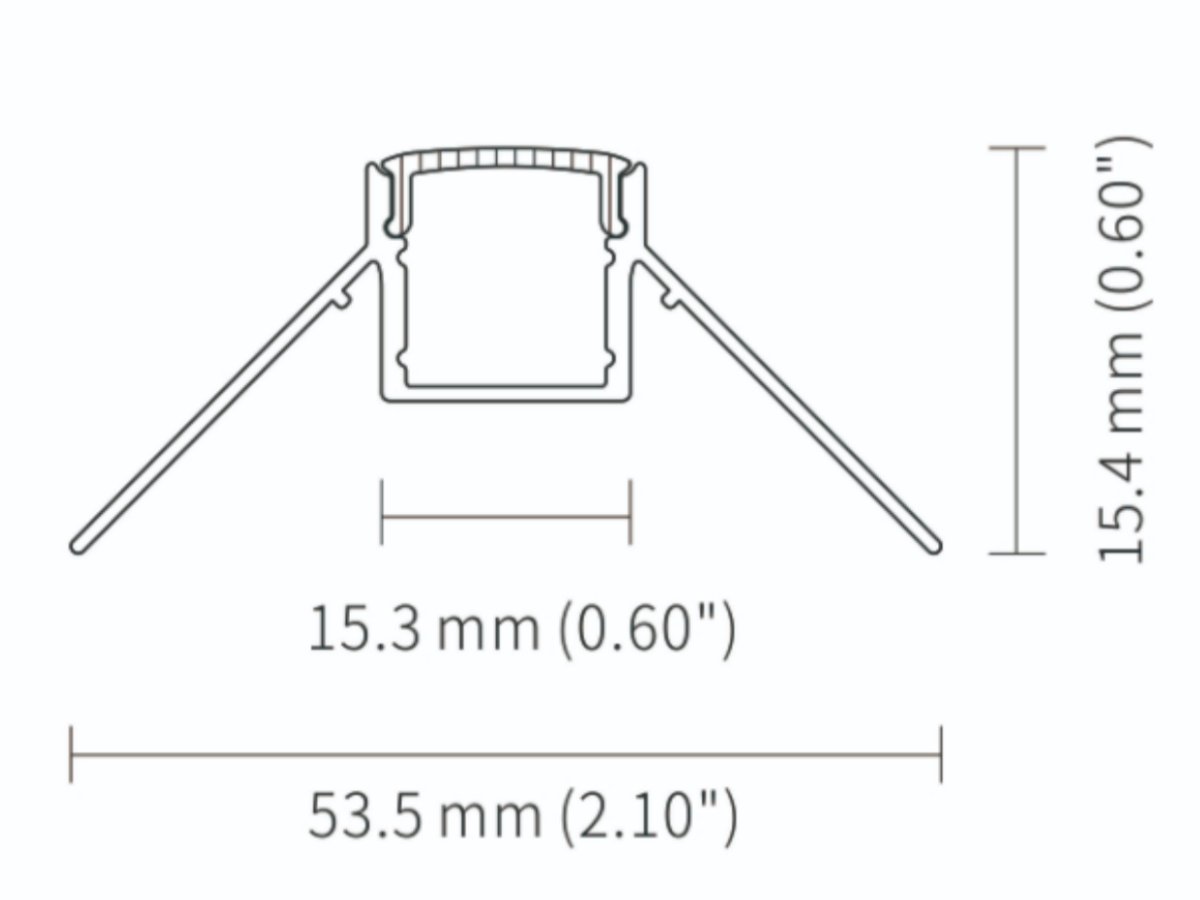

Dimensions W53.5*H115.4mm
Standard length 1m/2m/3m/pcs
Suitable for led strip PCB width up to 12.3mm
Material 6063 T5 Aluminum Alloy
Finished color Silver/Black/white
Diffuser material PC/ PMMA
Accessories PC Cover, End caps, Clips
Installation Recessed-Mounted
Standard Package Inner Clear PE bag+Carton Box
Customized Package  Available on request


Product Description

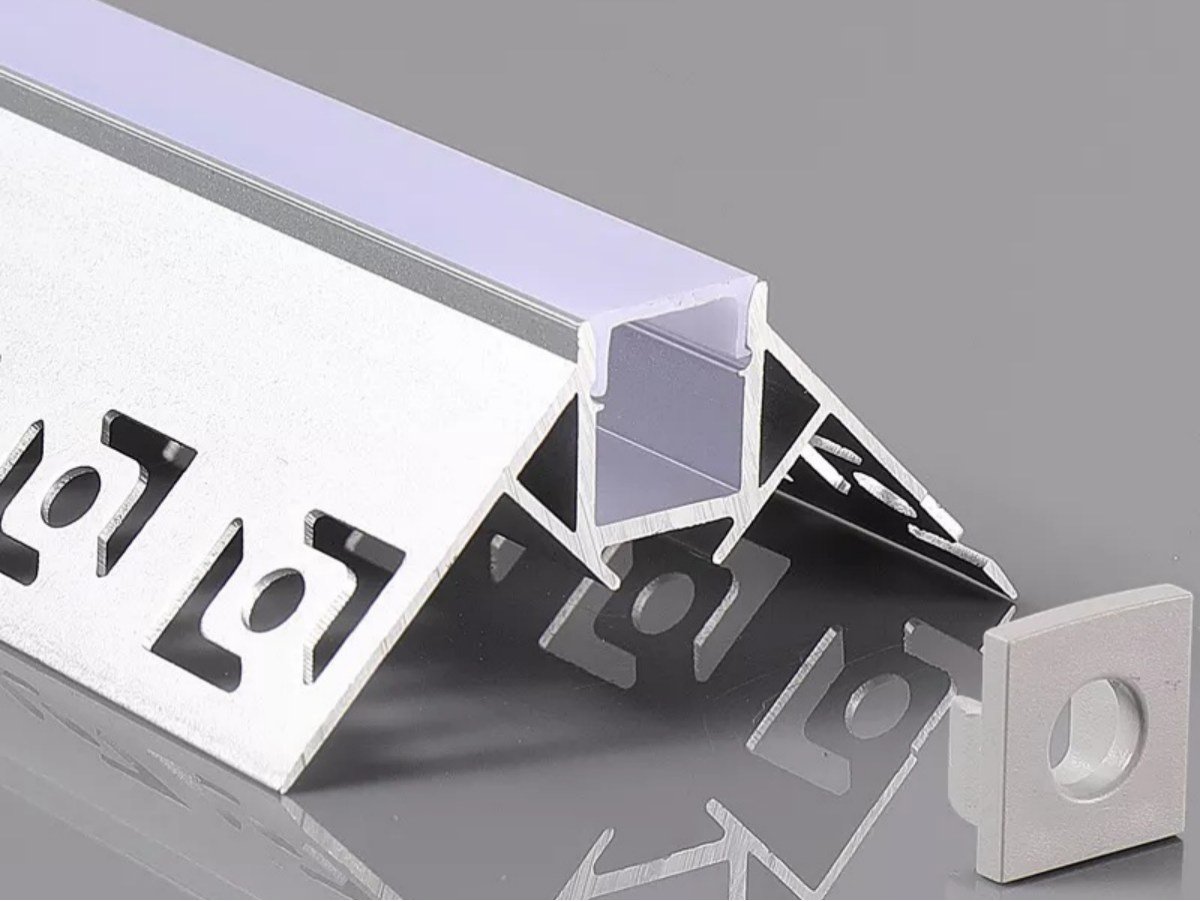

The Plasterboard Corner Recessed LED Strip Channel Housing Profile Extrusion Channel is designed to be installed within gypsum walls to provide an optimal lighting solution for LED strips. The utilization of an LED aluminum channel ensures the safeguarding of the lights from damage or breakage, while the incorporation of a drywall LED diffuser contributes to a more comfortable lighting performance and an overall improved appearance.

Our M53-15 model LED profile architecture boasts a channel that expeditiously dissipates the minimal heat produced by the LED’s, which, in turn, doubles the lifetime of the lights with ease.

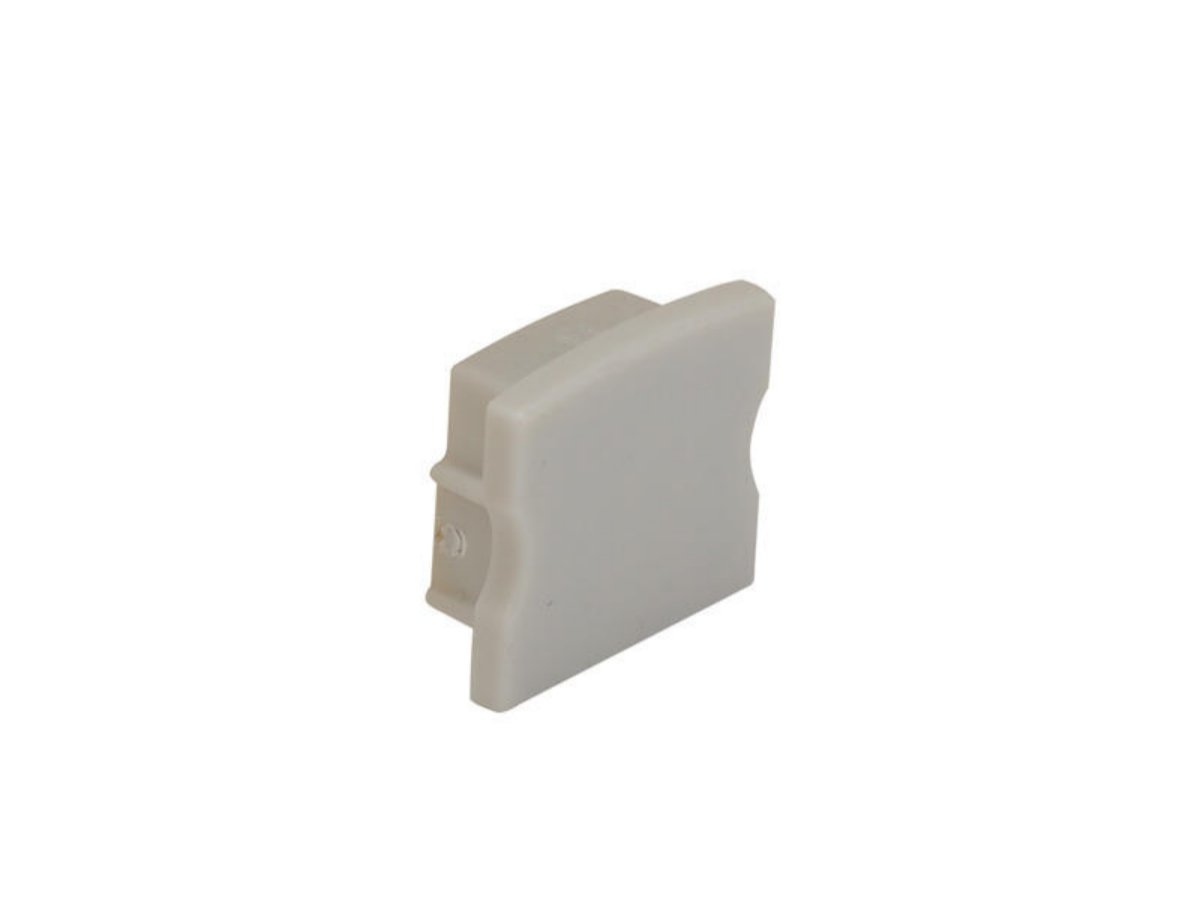

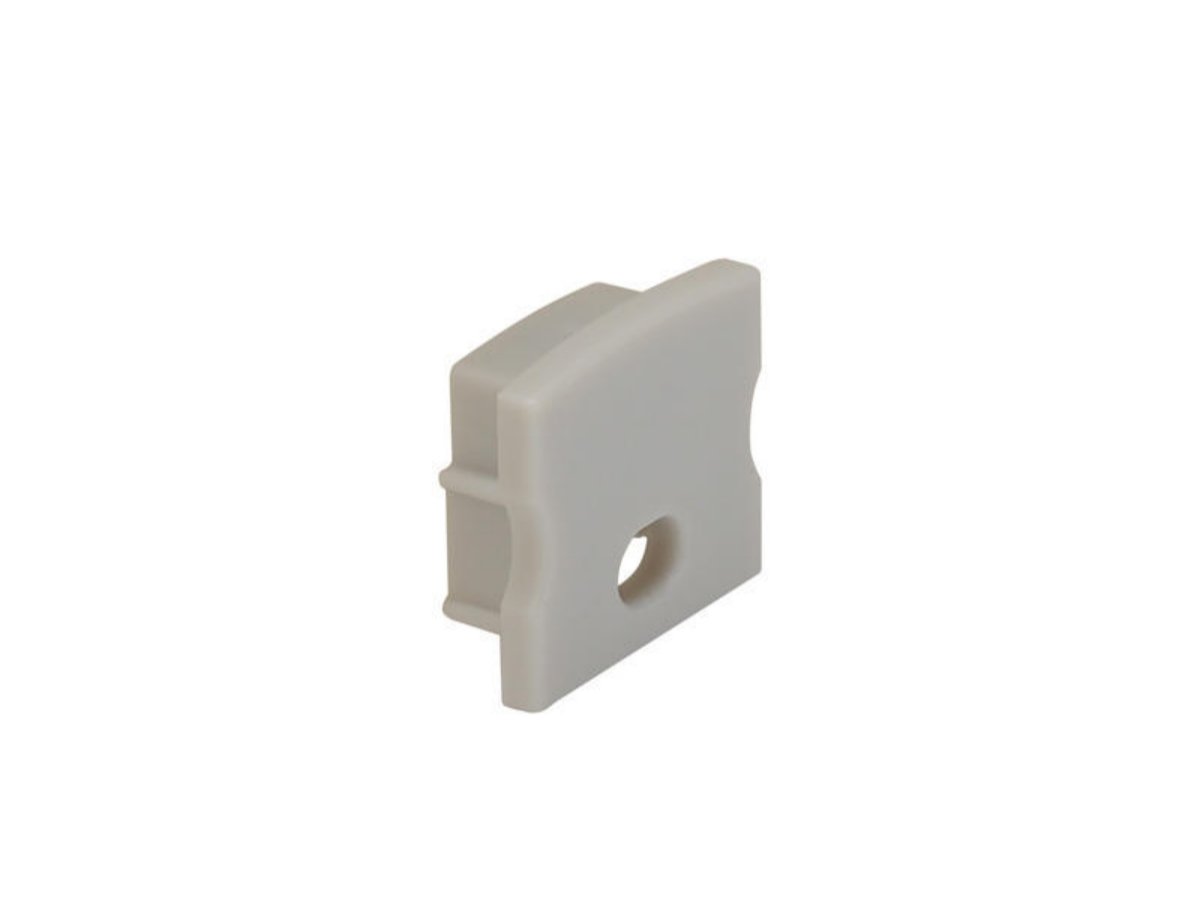

For added protection of the LED strip and controlled light diffusion, our LED channel system provides end caps to enclose the drywall LED strip channel.

LED Strip Channel Features

1. Ideal for use with both flexible and rigid LED strip lights.
2. Constructed with 6063 aluminum alloy LED profile and efficient heat-dissipating LED diffuser.
3. Features long-lasting Anodize Surface treatment for aluminum LED profiles.
Provides both heat sink and physical protection for LED strips.
4. Utilizes LED channel diffusers that minimize glare while producing a soft light output.
5. Premium alloy profile ensures excellent protection for LED strips.
6. Equipped with two trims to simplify installation of LED profiles on concrete surfaces, ensuring strong wall bonding.

Application Scenes

– Offices LED channel Lighting
– Meeting room LED Lighting LED strip diffusers
– Supermarket decoration lighting
– Home ceiling LED channel
– Stores shelf LED lighting


Advantages of extrusion

1. The extrusion method has great production flexibility, and ceiling LED channel with different shapes and sizes can be produced only by changing the mold.
2. Short mold replacement time, high production efficiency,
3. The dimensional accuracy of extruded aluminum channel for LED strips are far better than that of rolling and die forging, and the surface roughness is better.
4. The mechanical properties of the extruded LED diffuser channle are good, and the extrusion effect is that the longitudinal properties of the products after quenching or aging are higher than those of rolling and die forging.

Standard Length &Customized length

Our LED strip mounting channel standard length is 1M/2M/3M each piece, but we can also do customized aluminum channel LED length for you and cut the length what you need, accessories include PC Cover+End Cap


How to install the LED channel?

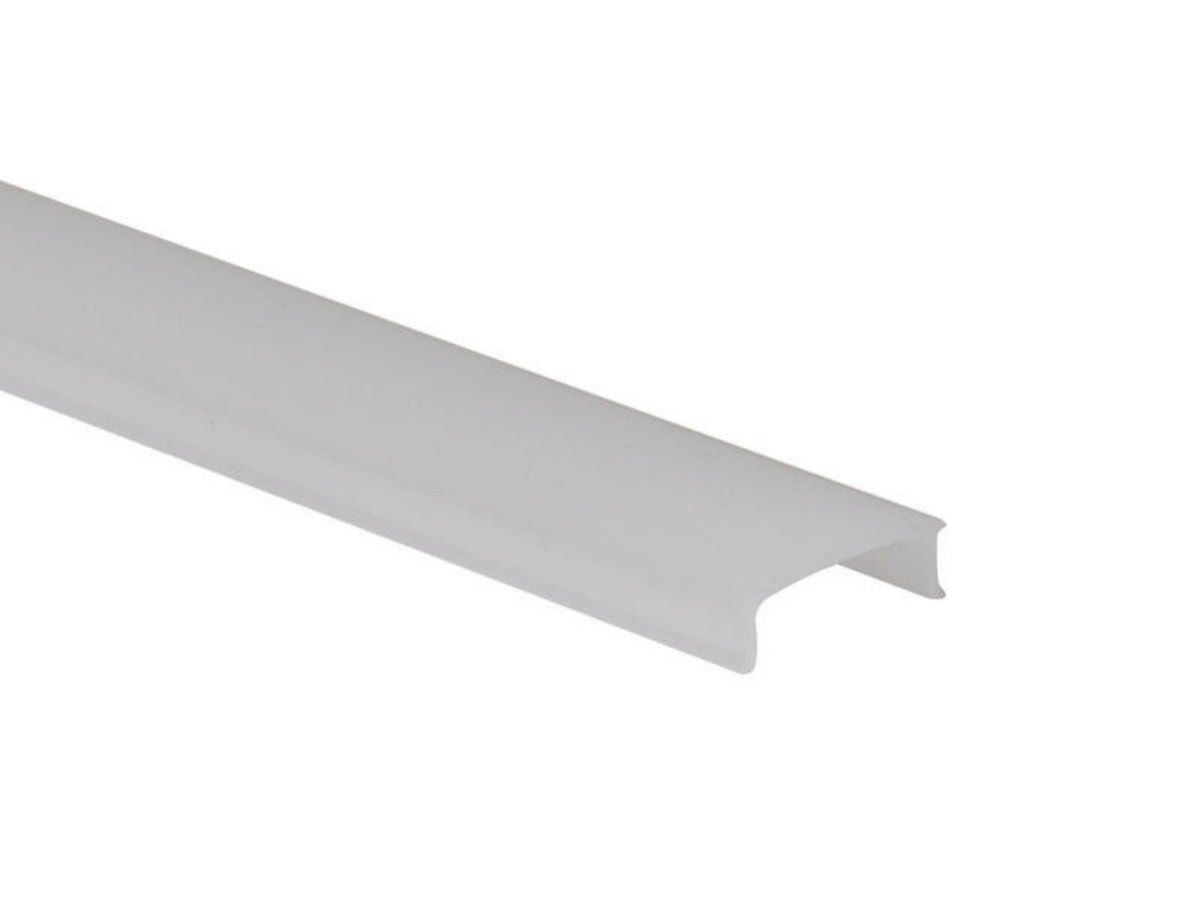

1. Click the PC Cover
2.Push in the cover in the end
3.Enclosed the end cap on LED channel system
