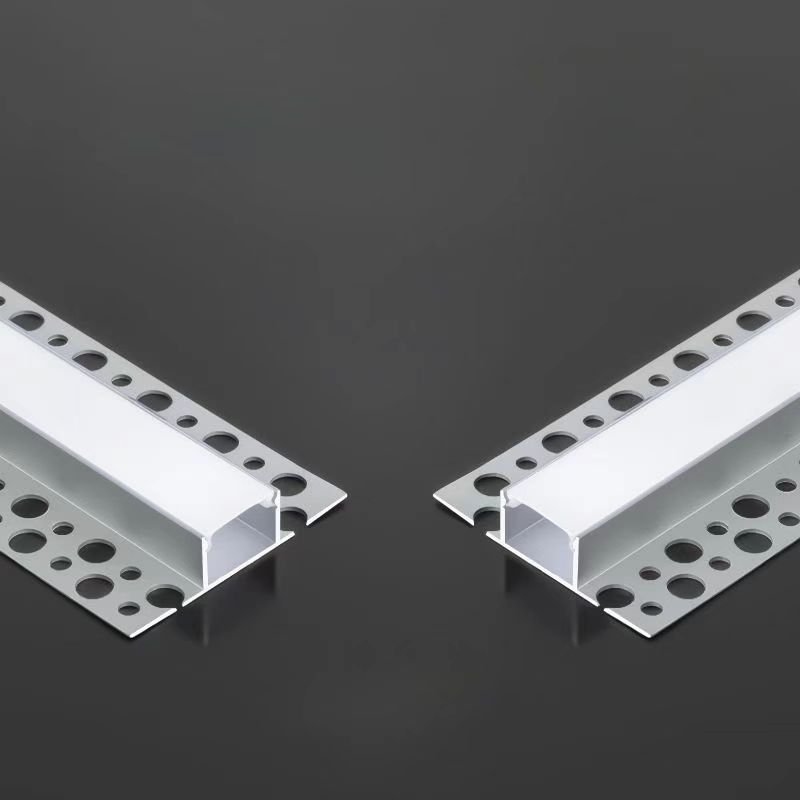

20mm Width Plaster-In LED Drywall Channels for Ceiling Wall Lighting

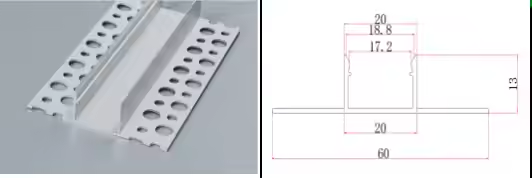

Model No	M60-13 (Plasterboard LED Profile)
Dimensions	W60.0*H13.0mm
Standard length	1m/2m/3m/pcs
Suitable for led strip	PCB width up to 21mm
Material	6063 T5 Aluminum Alloy
Finished color	Silver/Black/white
Diffuser material	PC/ PMMA
Accessories	PC Cover, End caps, Clips

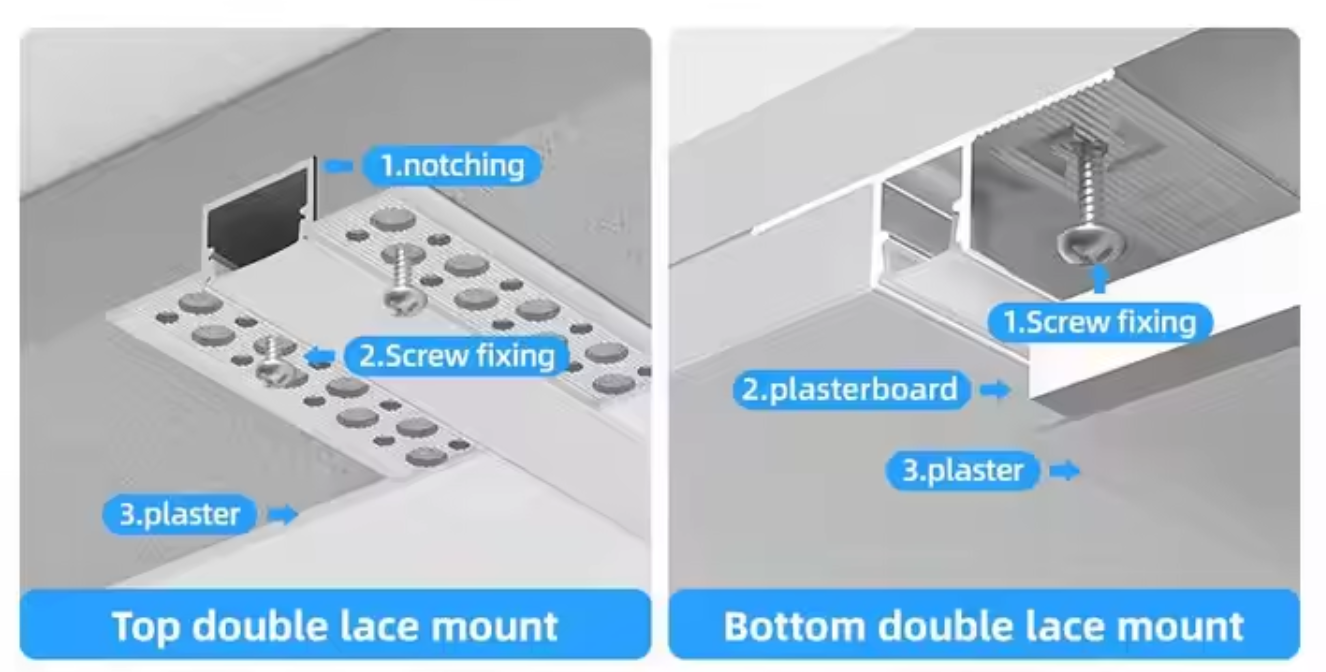

Installation	Recessed-Mounted
Standard Package	Inner Clear PE bag+Carton Box
Customized Package	Available on request

INQUIRY NOW

Product Description

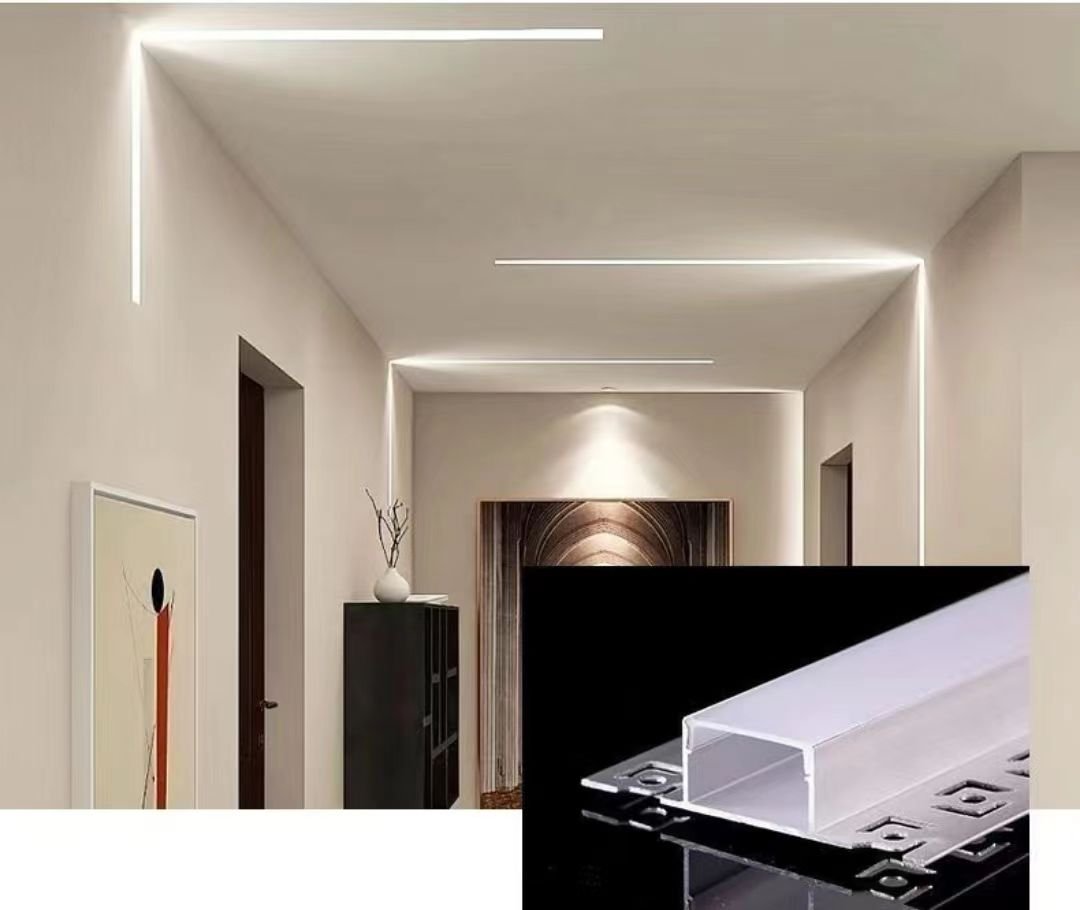

The 20mm Width Plaster-In LED Drywall Channel is specifically designed for seamless integration into ceilings and walls, delivering a clean, trimless lighting effect. With its 20mm wide channel, it accommodates high-output or double-row LED strips, making it ideal for both ambient and task lighting. The aluminum profile ensures optimal heat dissipation, while the included diffuser softens the light for a smooth, glare-free finish. Once plastered into drywall, the profile becomes virtually invisible—leaving only a sleek line of light that enhances modern architectural spaces. Perfect for residential, commercial, and hospitality lighting designs.

LED Strip Channel Features

【Seamless Trimless Design】Designed to be plastered into drywall for a clean, integrated lighting look with no visible edges.
【Wide 20mm Inner Channel】Supports double-row or high-output LED strips, ideal for powerful lighting applications.
【High-Quality Aluminum】Made from durable anodized aluminum for excellent heat dissipation and extended LED lifespan.
【Smooth Light Diffusion】Comes with a frosted diffuser cover to provide even, glare-free illumination.
【Architectural Aesthetic】Perfect for creating modern light lines in ceilings or walls without bulky fixtures.
【Versatile Application】Suitable for residential, commercial, and hospitality environments like living rooms, offices, hallways, and hotels.

Application Scenes

– Offices LED Lighting
– Meeting room LED Lighting LED strip diffusers
– Supermarket decoration lighting
– Home drywall LED channel
– Stores shelf LED lighting

Advantages of extrusion

1. The extrusion method has great production flexibility, and LED strip channel with different shapes and sizes can be produced only by changing the mold.
2. Short mold replacement time, high production efficiency,
3. The dimensional accuracy of extruded aluminum channel for LED strips are far better than that of rolling and die forging, and the surface roughness is better.
4. The mechanical properties of the extruded LED diffuser channle are good, and the extrusion effect is that the longitudinal properties of the products after quenching or aging are higher than those of rolling and die forging.

Standard Length &Customized length

Our LED strip mounting channel standard length is 1M/2M/3M each piece, but we can also do customized drywall LED channel length for you and cut the length what you need, accessories include PC Cover+End Cap
