12mm Width Extrusion Led Aluminium Profile For Tiled Edge 2M

Model No	M32-11 (Plasterboard LED Profile)

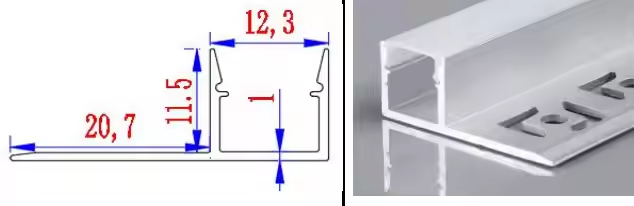

Dimensions	W32.0*H12.3.0mm
Standard length	1m/2m/3m/pcs
Suitable for led strip	PCB width up to 10mm
Material	6063 T5 Aluminum Alloy
Finished color	Silver/Black/white
Diffuser material	PC/ PMMA
Accessories	PC Cover, End caps, Clips
Installation	Recessed-Mounted
Standard Package	Inner Clear PE bag+Carton Box
Customized Package	Available on request

INQUIRY NOW

Product Description

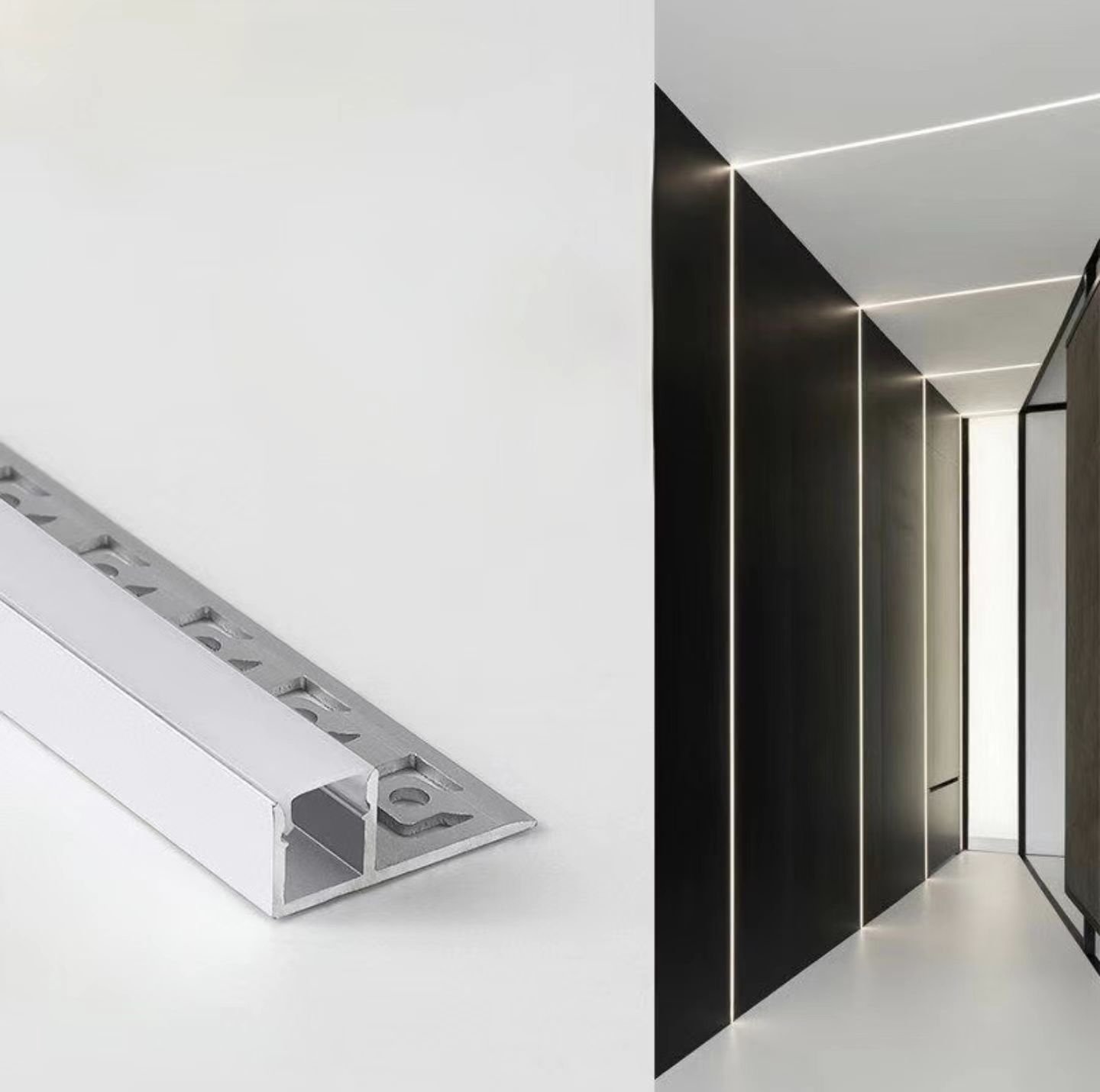

The 12mm Width Extrusion LED Aluminium Profile for Tiled Edge (2M) is specially designed to integrate seamlessly into tiled surfaces, providing a sleek and professional finish. With a 12mm inner width, it is compatible with most standard LED strips, delivering clean and even illumination. The profile features a tile-edge flange that ensures a flush installation between tiles, making it ideal for kitchens, bathrooms, and other tiled areas. Made from high-quality anodized aluminum, it offers excellent heat dissipation and protects the LED strip from dust and moisture. The included diffuser cover softens the light and enhances visual comfort.

LED Strip Channel Features

【Tile-Edge Design】Specially designed with a flange for seamless integration into tiled surfaces, ensuring a clean and flush finish.
【12mm Inner Width】Fits most standard single-row LED strips, offering flexible lighting options.
【High-Quality Aluminum】Made from durable anodized aluminum for superior heat dissipation and long-term performance.
【Soft Diffused Lighting】Includes a frosted diffuser cover that delivers smooth, glare-free illumination.
【Moisture & Dust Protection】Protects LED strips from environmental factors, ideal for kitchens, bathrooms, and wet areas.
【Modern Aesthetic】Provides a stylish, built-in lighting solution that enhances the look of tiled walls and floors.

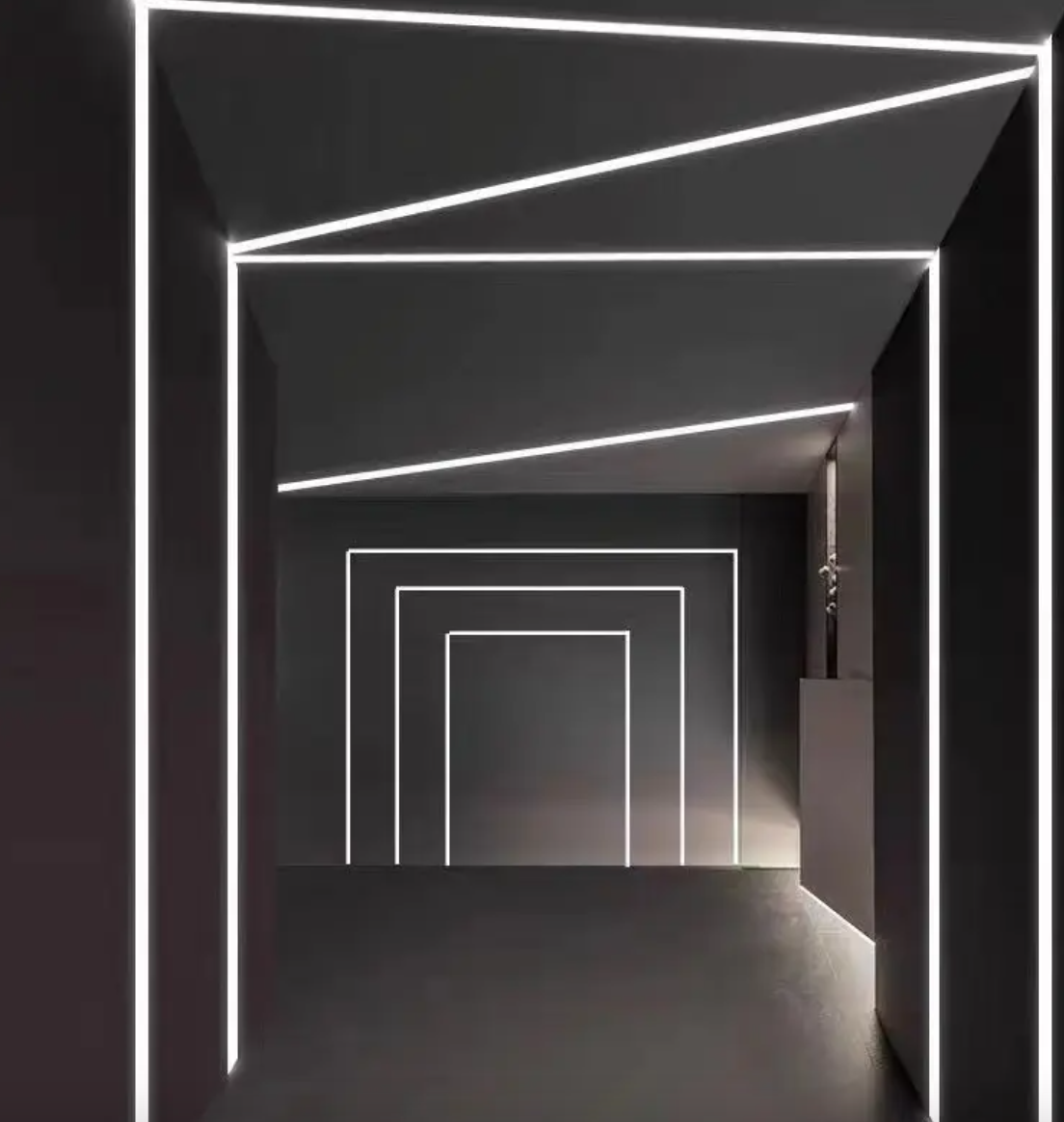

Application Scenes

– Offices LED Lighting
– Meeting room LED Lighting LED strip diffusers
– Supermarket decoration lighting
– Home drywall LED channel
– Stores shelf LED lighting

Advantages of extrusion

1. The extrusion method has great production flexibility, and LED strip channel with different shapes and sizes can be produced only by changing the mold.
2. Short mold replacement time, high production efficiency,
3. The dimensional accuracy of extruded aluminum channel for LED strips are far better than that of rolling and die forging, and the surface roughness is better.
4. The mechanical properties of the extruded LED diffuser channle are good, and the extrusion effect is that the longitudinal properties of the products after quenching or aging are higher than those of rolling and die forging.

Standard Length &Customized length

Our LED strip mounting channel standard length is 1M/2M/3M each piece, but we can also do customized drywall LED channel length for you and cut the length what you need, accessories include PC Cover+End Cap
