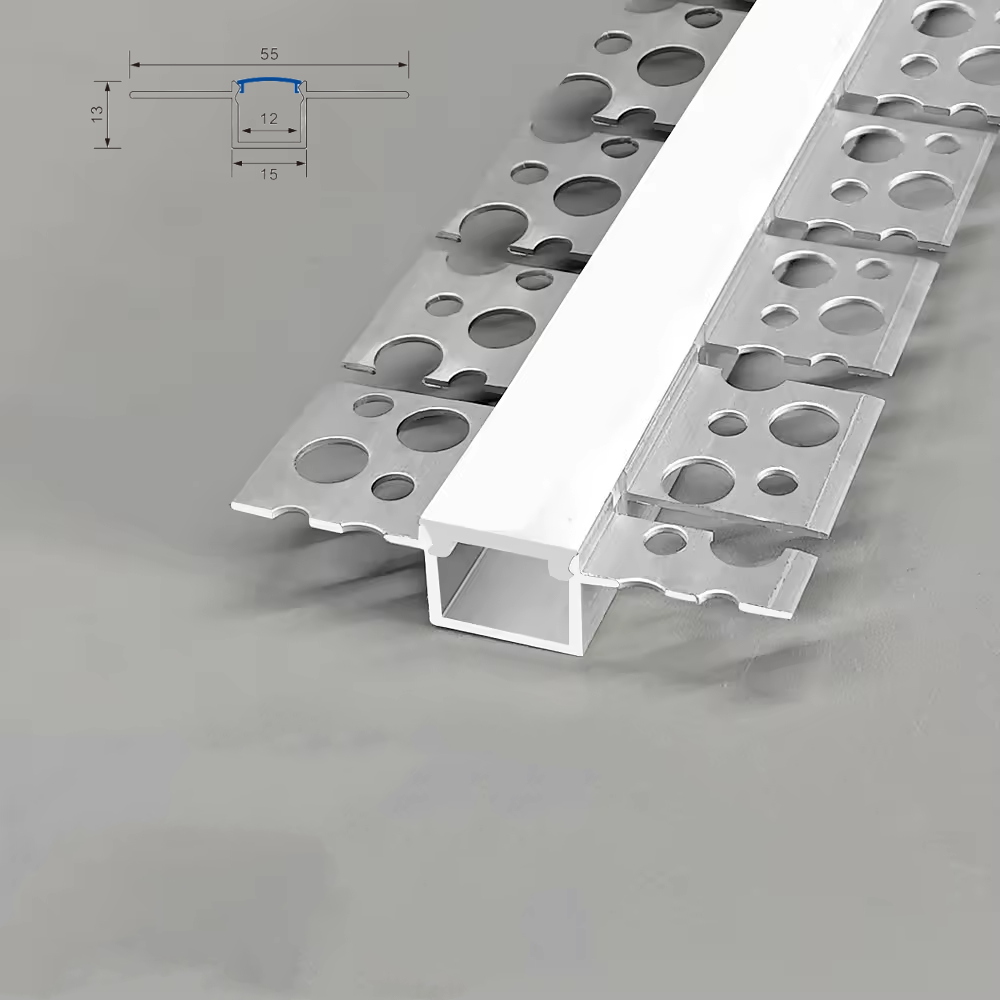

W55mm H13mm Flexible Bendable LED Profile Channel with Silicone Cover

Model No	Flexible M55-13 (Plasterboard LED Profile)

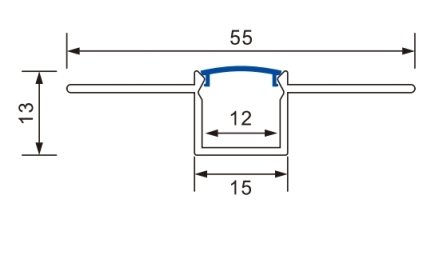

Dimensions	W55.0*H13.0mm
Standard length	1m/2m/3m/pcs
Suitable for led strip	PCB width up to 10mm
Material	6063 T5 Aluminum Alloy
Finished color	Silver/Black/white
Diffuser material	Slicone
Accessories	PC Cover,
Installation	Recessed-Mounted
Standard Package	Inner Clear PE bag+Carton Box
Customized Package	Available on request

INQUIRY NOW

Product Description

The W55mm H13mm Flexible Bendable LED Profile Channel with Silicone Cover is a specially designed aluminum profile for flexible linear lighting applications. With a width of 55mm and a height of 13mm, this profile allows the LED strip to bend smoothly along curved surfaces, making it ideal for creative lighting designs where straight profiles cannot be used.

LEDStrip Channel Features

1. Suitable for both flexible and rigid LED strip lighting.
2. Utilizes 6063 aluminum alloy LED profile for superior heat dissipation and diffusing properties.
3. Features durable anodized surface treatment for prolonged use of aluminum LED profiles.
Provides heat dissipation and physical protection for the LED strips.
4. Utilizes anti-glare LED channel diffusers to soften the light output.
5. High-quality alloy profile offers robust protection for LED strips.
6. Equipped with two trims for easy installation of LED profiles onto concrete surfaces, ensuring strong wall bonding.

Application Scenes

– Offices LED Lighting
– Meeting room LED Lighting LED strip diffusers
– Supermarket decoration lighting
– Home drywall LED channel
– Stores shelf LED lighting

Advantages of extrusion

1. The extrusion method has great production flexibility, and LED strip channel with different shapes and sizes can be produced only by changing the mold.
2. Short mold replacement time, high production efficiency,
3. The dimensional accuracy of extruded aluminum channel for LED strips are far better than that of rolling and die forging, and the surface roughness is better.
4. The mechanical properties of the extruded LED diffuser channle are good, and the extrusion effect is that the longitudinal properties of the products after quenching or aging are higher than those of rolling and die forging.

Standard Length &Customized length

Our LED strip mounting channel standard length is 1M/2M/3M each piece, but we can also do customized drywall LED channel length for you and cut the length what you need, accessories include silicone cover
