Up and Down Lighting Ceiling Top LED Profile Channel With Milky Diffuser

Model No	M91-76 (Corner LED Profile)

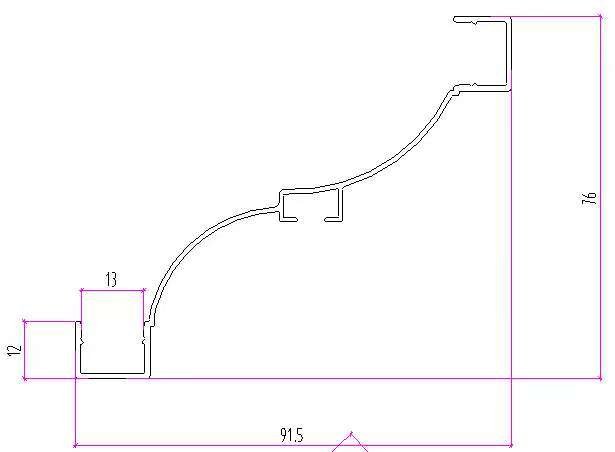

Dimensions	W91.5*H76mm
Standard length	1m/2m/3m/pcs
Suitable for led strip	PCB width up to 11mm
Material	6063 T5 Aluminum Alloy
Finished color	Silver/Black/white
Diffuser material	PC/ PMMA
Accessories	PC Cover, End caps, Clips
Installation	Surface-mounted
Standard Package	Inner Clear PE bag+Carton Box
Customized Package	Available on request

INQUIRY NOW

Product Description

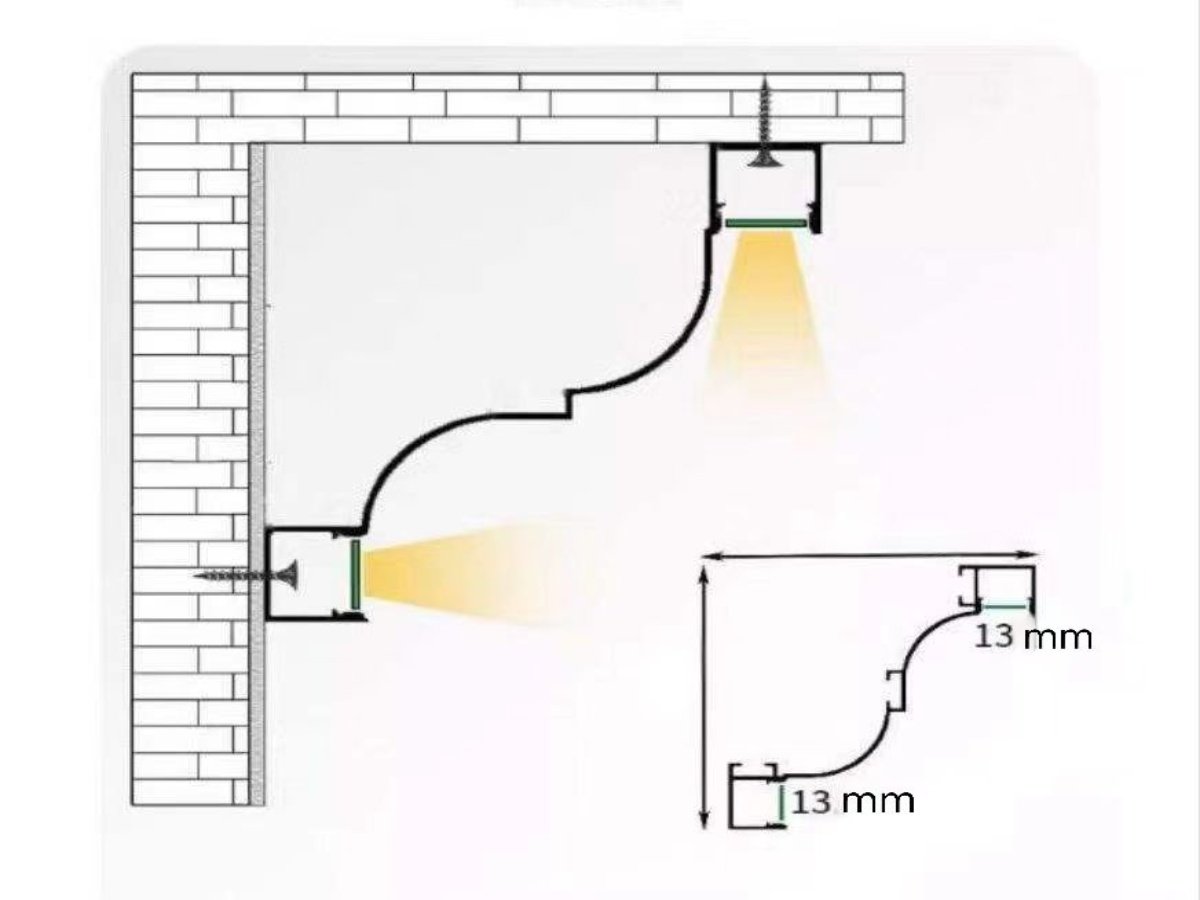

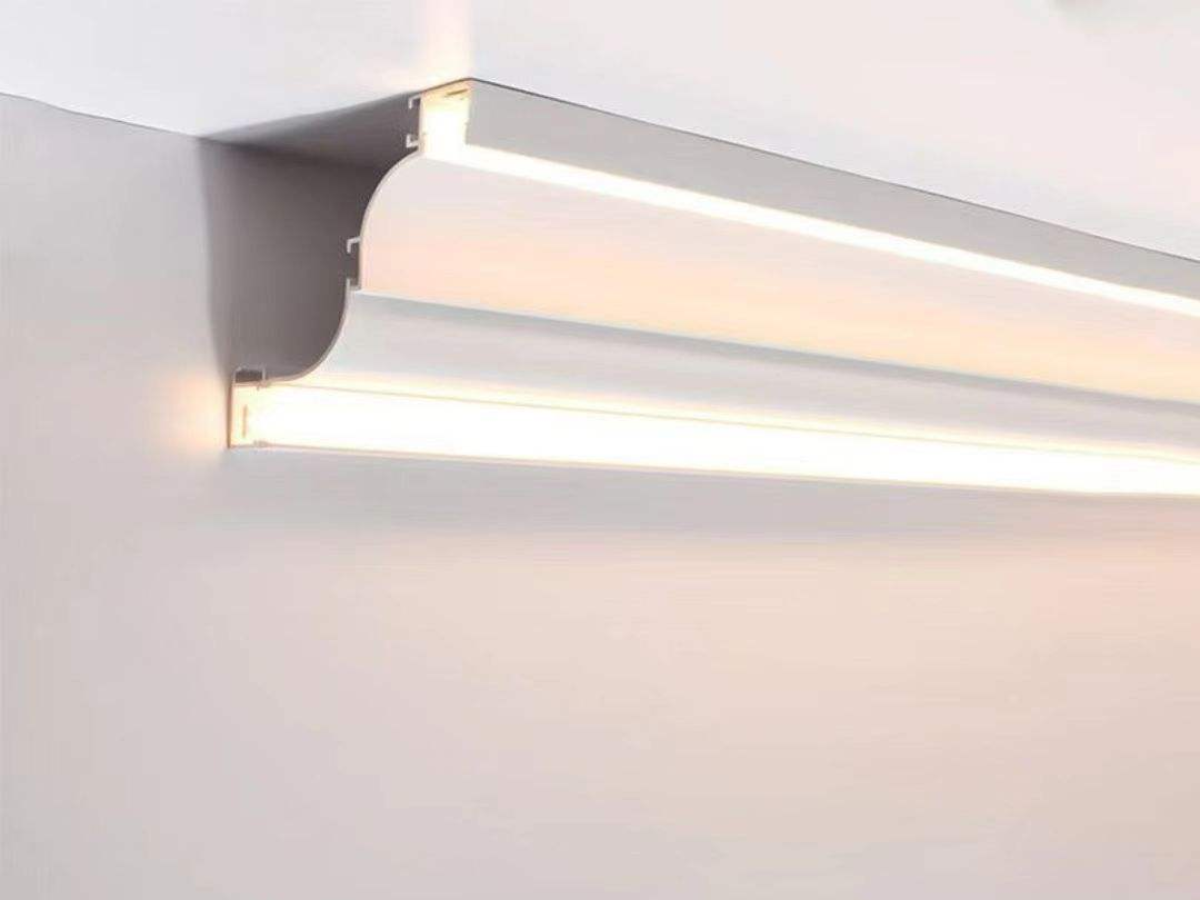

Up and Down Lighting Ceiling Top LED Profile Channel with Milky Diffuser is designed to deliver both upward and downward illumination, creating a balanced and modern lighting effect. The integrated milky diffuser provides soft, uniform light output while reducing glare and eliminating visible LED dots. Made from high-quality materials, the profile ensures excellent heat dissipation and long-term durability. Its sleek design makes it ideal for ceiling-mounted applications in residential, commercial, and architectural spaces, enhancing both functionality and visual appeal.

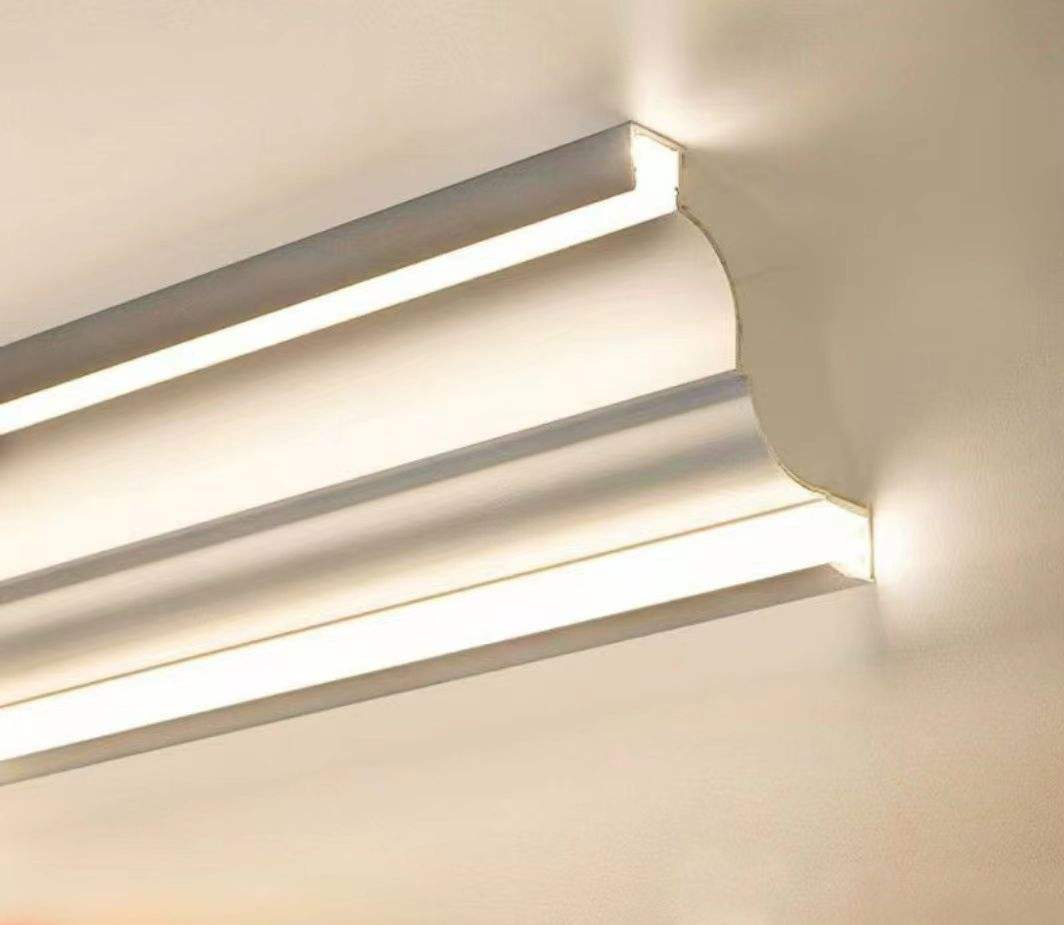

LED-Channels-with-PC-Cover-Channel-Extrusion-90-Angle-8

LED Strip Channel Features

1. For flexible or hard LED strip light
2. 6063 aluminum alloy, excellent heat sinking
3. LED diffuser channel is through Anodize Finish so that can protect LED strip better
4. Heat sink and physical protection to the LED strips
5. Anti-glare but soften light output LED profile
6.Easy to install the LED channels with pc cover, end cap, clip

Application Scenes

1. Commercial Offices

Provides balanced up and down lighting for comfortable and efficient working environments.

2. Hotels & Hospitality Spaces

Enhances ceilings in hotel lobbies, corridors, and guest rooms with a modern and elegant lighting effect.

3. Retail Stores & Showrooms

Creates attractive ambient lighting while highlighting products and architectural details.

4. Residential Interiors

Ideal for living rooms, kitchens, and hallways, adding soft and glare-free ceiling illumination.

LED-Channels-with-PC-Cover-Channel-Extrusion-90-Angle-10

Advantages of extrusion

The extrusion is made from high quality aviation 6063-T5 aluminum alloy with double-anodized
The extrusion method has great production flexibility, and LED strip light diffuser with different shapes and sizes can be produced only by changing the mold.
Short mold replacement time, high production efficiency,
The dimensional accuracy of extruded products is far better than that of rolling and die forging, and the surface roughness is better.
The mechanical properties of the extruded LED aluminium profiles are good, and the extrusion effect is that the longitudinal properties of the LED channeling after quenching or aging are higher than those of rolling and die forging.

Cutting Service

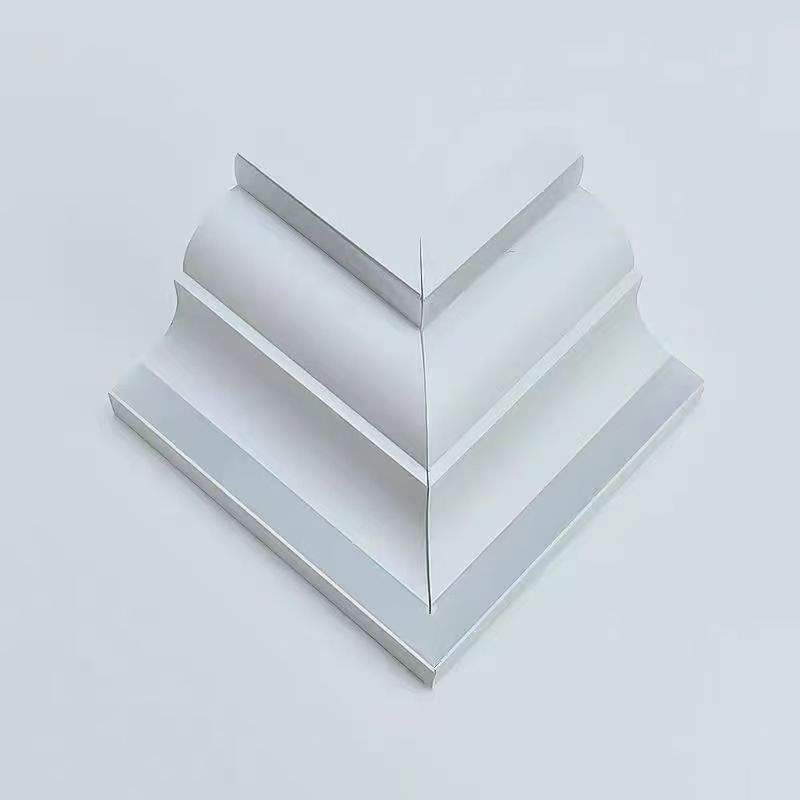

We support cutting connectors to 90-degree corners, as shown in the picture below.
